ALLNET 4duino präzisions Temperatur-Steuerung
Termékszám:
147865
ALLNET 4duino präzisions Temperatur-Steuerung mit 12V DC Relay

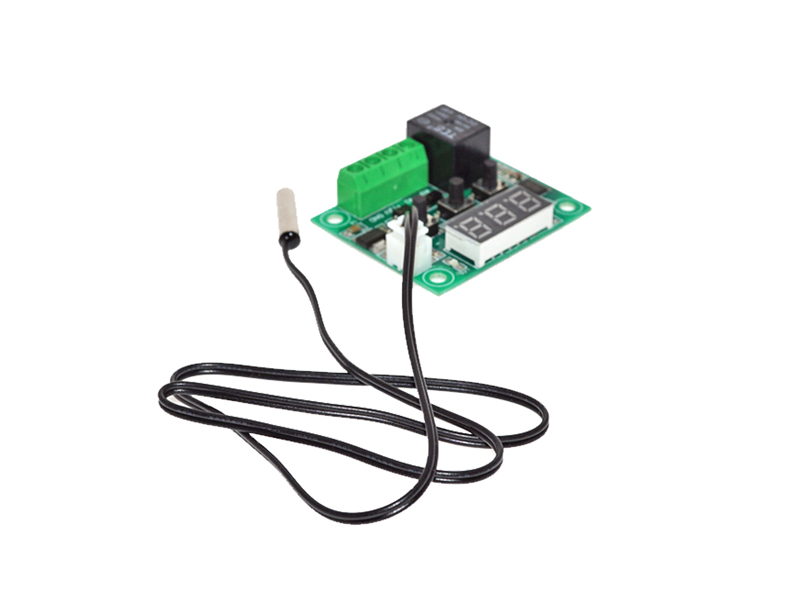

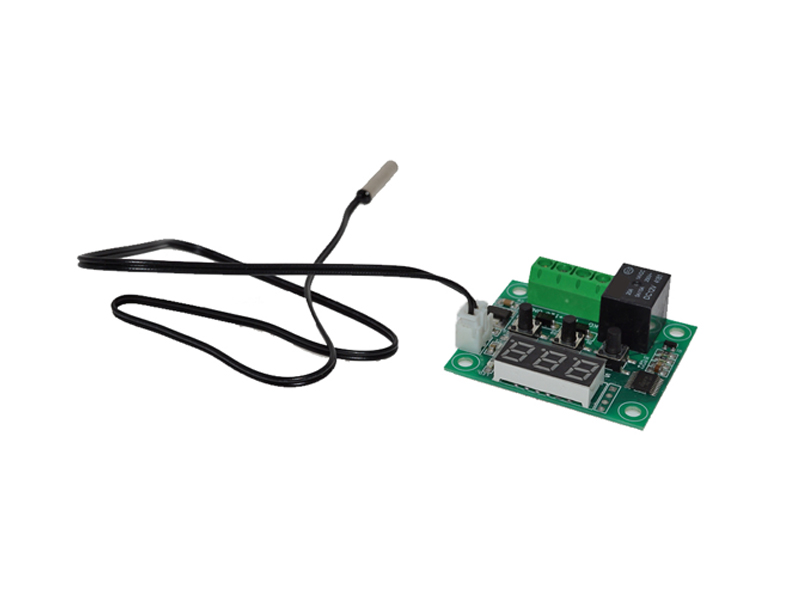

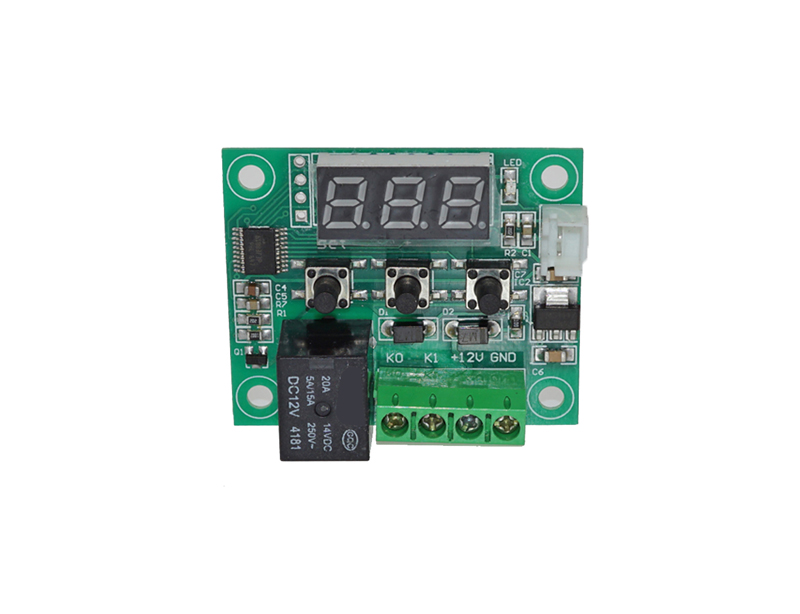

Benötigt 12V DC Stromversorgung !!! XH-W1209 Thermostat Switch Plate High-Precision Digital Temperature Control Board Module
Product Description
1.Indicator: OFF indicates the relay is switched off; ALWAYS indicates the relay is closed.
2.LED: shows LL means the sensor opens; shows HH means it?s out of range, the thermostat will be forced to close the relay, the display ? as high temperature protection.
3.Temperature Range: -50~110°C.
4.Resolution: 0.1°C(-9.9~99.9°C), 1°C(Other Ranges).
5.Accuracy: 0.1°C.
6.Refresh Rate: 0.5s.
7.High Temperature Protection: 0~110°C.
8.Input Power: DC 12V.
9.Static Current: =35mA, Attract Current: =65mA.
10.Measurement Input: NTC(10K 0.5%) Waterproof Type Sensor.
11.Output Range: 1 Channel 10A Relay Output.
12.Size: Approx. 48x40x15mm.
1 208 Ft
Több mint 100.000 termék azonnal raktárról
Megbízható, elismert világmárkák
30 év szakmai tapasztalat
Versenyképes árak
Figyelem! A termékleírások automatizált fordítószoftver által jöttek létre.
Termékinformációk "ALLNET 4duino präzisions Temperatur-Steuerung"
ALLNET 4duino präzisions Temperatur-Steuerung mit 12V DC Relay
Benötigt 12V DC Stromversorgung !!! XH-W1209 Thermostat Switch Plate High-Precision Digital Temperature Control Board Module
Product Description
1.Indicator: OFF indicates the relay is switched off; ALWAYS indicates the relay is closed.
2.LED: shows LL means the sensor opens; shows HH means it?s out of range, the thermostat will be forced to close the relay, the display ? as high temperature protection.
3.Temperature Range: -50~110°C.
4.Resolution: 0.1°C(-9.9~99.9°C), 1°C(Other Ranges).
5.Accuracy: 0.1°C.
6.Refresh Rate: 0.5s.
7.High Temperature Protection: 0~110°C.
8.Input Power: DC 12V.
9.Static Current: =35mA, Attract Current: =65mA.
10.Measurement Input: NTC(10K 0.5%) Waterproof Type Sensor.
11.Output Range: 1 Channel 10A Relay Output.
12.Size: Approx. 48x40x15mm.
