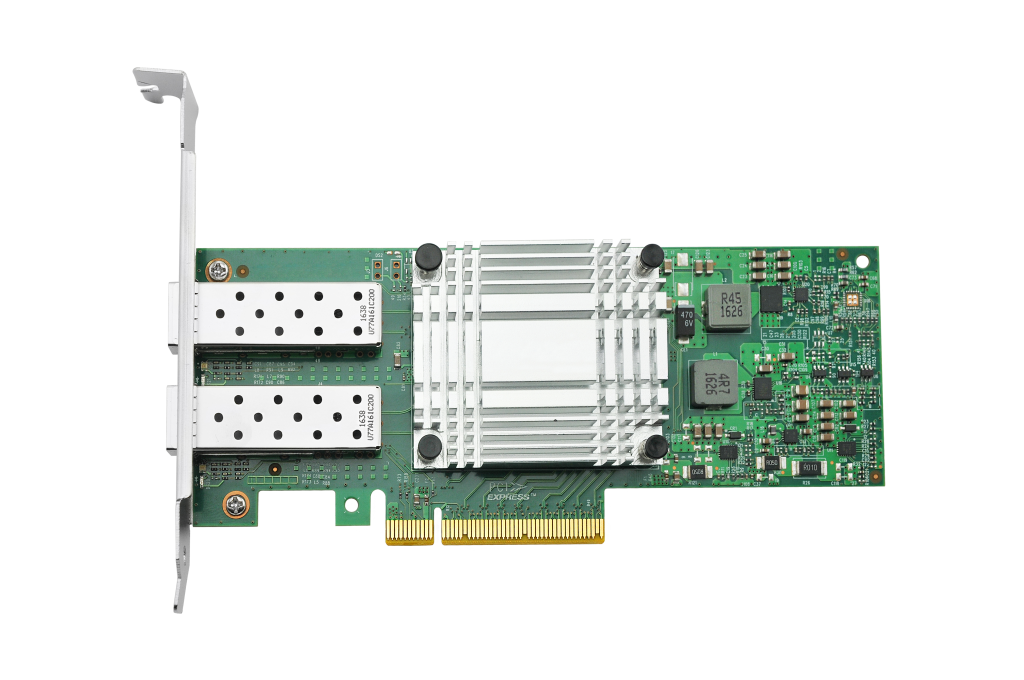

ALLNET ALL0140-2SFP+-10G PCI Express v3.0 x8 Dual Port SFP+ 10 Gigabit Server Adapter (Intel X710- BM2 Based) Overview: ALL0140-2SFP+-10Gis ALLNET a new generation of high-performance server adapter, based on the Intel X710-BM2 controller. The Server Adapter addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance. The ALL0140-2SFP+-10Gadapter delivers superior performance in a PCI Express v3.0 x8 slot. Optimized performance  vectors and key uses include: •Small Packet Performance:  Achieves wire-rate throughput on smaller payload sizes (>64 Bytes for 10 GbE) •Bulk Transfer Performance:  Delivers line-rate performance with low CPU usage for large application buffers •Network Virtualization:  Network virtualization overlay offloads including Geneve, VXLAN, and NVGRE •Storage Performance:  Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI and FCoE) Key Features • Dual –Port 10GbE Server Adapter • PCI Express* (PCIe) 3.0, x8 • Exceptional Low Power Adapters • Network Virtualization offloads including Geneve, VXLAN  and NVGRE • Intel® Ethernet Flow Director for hardware based application traffic steering • Intel® Data Plane Developer Kit (DPDK) optimized for efficient packet processing • Excellent small packet performance for network appliances and Network Function Virtualization (NFV) • Intelligent offloads to enable high performance with Intel® Xeon® processor-based servers • I/O virtualization innovations for maximum performance in a virtualized server • Unified networking providing a single wire support for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE) A Complete, Unified Networking Solution Converging data and storage onto one fabric eliminates the need for multiple adapters, cables and switches. Furthermore 10 gigabit Ethernet provides the bandwidth to converge these multiple fabrics onto a single wire. A  key capability that  makes all this possible is traffic class separation provided by Data Center Bridging (DCB) —providing  a one-wire solution with virtual pipes for the different classes of traffic: • Data: Best effort delivery of standard LAN traffic • Storage: Lossless network for FCoE and iSCSI • Management: Guaranteed connectivity of data center IP management Power Savings Power efficiency is critical to IT specialists as energy consumption is a real OpEx concern. • Lowest Power Consumption The new generation of ALL0140-2SFP+-10Gadapters are power misers. They deliver double the throughput with only half the power of the previous ALL0140-2SFP+-10G • Energy Efficient Ethernet (EEE) Reduces power consumption during periods of low data activity. Energy is used to maintain the physical layer transmitters in a “ready state” to transmit data on the wire. During periods of low data traffic, EEE sends a low-power-idle signal to put the transmitters into a “low power state” saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance. Server Virtualization With Intel Virtualization Technology (VT), the ALL0140-2SFP+-10Gdeliver outstanding I/O performance in virtualized server environments. They reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), enabling near-native performance and VM scalability. The host-based virtualization technologies  supported by Intel VT include: • VMDq for Emulated Path: Adapter-based VM Queue sorting enabling efficient hypervisor-based switching • SR-IOV for Direct Assignment:   Adapter-based isolation and switching for various virtual station instances enabling optimal CPU usage in virtualized environments. Additionally, ALL0140-2SFP+-10G provide Virtual Bridging support that delivers both host-side and switch-side control and management of virtualized I/O as well as the following modes of virtualized operation: VEPA : IEEE 802.1Qbg support for Virtual Ethernet Port Aggregator VEB: Virtual Ethernet Bridge support via Intel® VT Network Virtualization Network virtualization is the next big trend in creating an agile data center.  The ALL0140-2SFP+-10Gadapter is ready to help you take that next step. • VXLAN, NVGRE, GENEVE Offloads:  These stateless offloads preserve application performance for overlay networks. With these offloads it is possible to distribute network traffic across CPU cores. At the same time X710 offloads LSO, GSO, and check-sum from the  host software reducing CPU overhead. Intel® Ethernet Flow Director Flow Director is an advanced traffic steering capability built into the X710 controller. It consists of a large number of flow affinity filters that direct receive packets by their flows to queues for classification, load balancing, and matching between flows and CPU cores. It eliminates context switching required within the CPU. As a result, Flow Director significantly increasing the number of transactions per second and reduces latency for cloud applications like Memcached. Intelligent Offloads The Intel Xeon processor family has demonstrated increased computing performance and increased integration of key server subsystems generation after generation. To offload is to leverage the ever-escalating computing power of the Xeon processor where appropriate and implementing complementary accelerations in the network controller—this is what Intel refers to as ”intelligent offloads.” By employing a balanced hybrid of compute and offload, intelligent offloads are able to achieve the optimized point of performance and efficiency. This is most notably observed in the following usage models: • TCP Stateless Offloads:  Demonstrates leading performance vs. TOE solutions without restricting feature usage (TOE usage usually requires that key features be disabled). Supported stateless offloads include Checksum, TSO, VMDq, and RSS. • Host iSCSI /FCoE Initiators:  Providing exceptional performance without the need for full-offload HBA2 methods. • Flow Classification:  Trafficking data flows across multiple consumers and connections. Manageability ALL0140-2SFP+-10Galso incorporate the manageability required by IT personnel for remote control and alerting.  Communication to the Board Management Controller (BMC) is available either through an on-board SMBus port or the DMTF-defined NC-SI, providing a variety of management protocols, including IPMI, BMC Pass-thru, OS2BMC, and MCTP/SMBus and MCTP/PCIe. FEATURES General Intel® X710-BM2 10 Gigabit Ethernet Controller SFP+ Connectivity Low-profile Full-height Load balancing on multiple CPUs iSCSI remote boot support Fibre Channel over Ethernet (FCoE) support Support for most network operating systems RoHS-compliant Intel® PROSet Utility for Windows*Device Manager Time Sync (IEEE 1588*, 802.1as) I/O Features for Multi-core Processor Servers Intel® Flow Director MSI-X support Multiple Queues: 1,536 Tx and Rx queues per port Tx/Rx IP, SCTP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities Virtualization Features Next-Generation VMDq Up to 256 maximum VMDq VMs supported PCI-SIG SR-IOV Implementation (128 per device) Virtual Machine Load Balancing(VLMB) Advanced Packet Filtering VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags VXLAN and NVGRE Support Manageability  Features Preboote Xecution Environment (PXE) Support Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters iSCSI Boot Watchdog Timer Adapter Product Features Intel® PROSet Utility Plug and play specification support Receive Side Scaling Advanced Software Feature Adapter fault tolerance (AFT)           Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug*/Active Periphera component interconnect (PCI) IEEE 802.1Q* VLANs IEEE 802.3 2005* flow control support Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol (UDP), Internet protocol (IP) IEEE 802.1p* TCP segmentation large send offload MSI-X supports Multiple Independent Queues Interrupt moderation IPv6 offloading — Checksum and segmentation capability extended to new standard packet type Network Operating Systems (NOS) Software Support Windows Server* 2012 R2;  Windows Server 2012 R2 Core; Windows Server 2012;  Windows Server 2012 Core;  Windows Server 2008 R2;  Windows Server 2008 R2 Core;  Linux* Stable Kernel version 2.6.32/3x;  Linux* RHEL 6.5 and RHEL 7.0;  Linux* SLES 11 SP3 and SLES 12;  FreeBSD* 9 and FreeBSD* 10;  UEFI* 2.1; UEFI* 2.3;  VMware ESXi 5.1 (Limited Functionality); VMware ESXi 5.5 Specifications General Connections Dual SFP+ cages for: • SFP+ SR fiber-optic transceivers • SFP+ LR fiber-optic transceivers • SFP+ Direct Attach cables Network Standard IEEE 802.3 Physical Layer Interface 10GBASE-SR (LRXP8510-X3ATL) 10GBASE-LR (LRXP1310-10ATL) SFF-8431: 10GSFP+ DAC (Direct Attach Copper) Technical Features Data rate supported per port • Optical: 1 GbE/10 GbE • Direct Attach: 10 GbE Bus type PCI Express 3.0 (8 GT/s) Bus Width x8 PCI Express Interrupt levels INTA, MSI, MSI-X Hardware certifications FCC, CE Controller-processor Intel® Ethernet Controller X710-BM2 Power Consumption   Dual-port 10GBASE-SR Typical  Power 4.3W;  Maximum Power 4.8W Dual-port 1000BASE-SX Typical  Power 4.0W;  Maximum Power 4.3W Dual-port 10GBASE-LR Typical  Power 4.5W;  Maximum Power5.1W Dual-port Direct Attach (Twinax) Typical  Power 3.3W;  Maximum Power3.7W Air Flow Minimum of 1 50 LFM required Operating temperature 0 °C to 55 °C (32 °F to 131 °F) Storage temperature -40 °C to 70 °C (-40 °F to 158 °F) Storage humidity Maximum: 90% non-condensing relative humidity at 35 °C LED Indicators LINK (solid) and ACTIVITY (blinking) LINK SPEED (green=10 Gbps; yellow=1 Gbps) Ordering Information: M/N Description ALL0140-2SFP+-10G PCI Express v3.0 x8 Dual Port SFP+ 10 Gigabit Server Adapter (Intel X710-BM2 Based) PS: Above details are only for reference, if there are any changes, no inform will have.   ATTENTION: works only with INTEL or compatible MSA code GBICS Treiberdownload

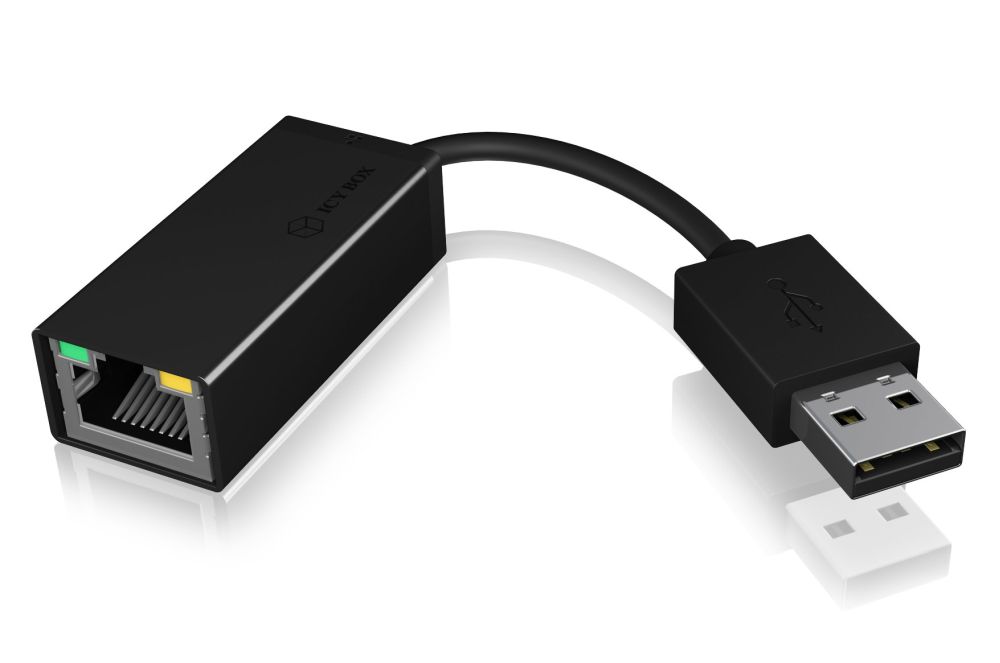

Hauptmerkmale USB 2.0 zu Ethernet Adapter Wandelt einen USB 2.0 Port in einen RJ-45 Ethernet Port um Übertragungsgeschwindigkeit: USB 2.0 bis 480 Mbit/s, Ethernet: 10/100 Mbit/s Unterstützt IEEE 802.3, 802.3u Standards

Heben Sie Ihre Endgeräte auf die nächste Geschwindigkeitsstufe. Native Treiberunterstützung macht die Installation sehr einfach. Schließen Sie einfach diesen USB-X-zu-Ethernet-Adapter an den USB-Port Ihres Laptops an und verbinden Sie ihn mit Ihrem Netzwerk. Der Realtek RTL8156-Chipsatz des Netzwerkadapters bietet native Treiberunterstützung für Mac OS und Linux. Alle Windows-Betriebssysteme ohne den Treiber werden automatisch aufgefordert, die Software direkt vom Adapter herunter zu laden, so dass eine schnelle Installation ohne Internet-Zugang gewährleistet ist. • Chipsatz: RTL8156X • Anschlüsse:     1 x USB 3.0 Typ A Stecker     1 x 2.5Gigabit LAN RJ45 Buchse • Datentransferraten:     Ethernet bis zu 10 Mb/s (Half/Full Duplex)     Fast Ethernet bis zu 100 Mb/s (Half/Full Duplex)     Gigabit bis zu 1000 Mb/s (Half/Full Duplex)     MultiGigabit bis zu 2500 Mb/s (Half/Full Duplex) • Unterstützt Auto MDIX (automatische Erkennung von Standard oder Crossover Netzwerkkabel) • Windows Vista, 8, 10, Mac OS, Linux kompatibel und Treiber verfügbar • PC oder Notebook mit einem freien USB 3.0 oder USB 2.0 Port     • Unterstützt WOL-Wake on Lan !! Merkmale - USB-Typ-A-zu-RJ45-Adapter unterstützt 2,5-Gigabit-Netzwerke überUSB 3.0 - IEEE 802.3bz (2,5GBASE-T)-kompatibel - Kompatibel mit IEEE 802.3i, 802.3u und 802.3ab (10BASE-T, 100BASE-TX und 1000BASE-T) - Stromversorgung direkt über die USB-Anschlüsse - Unterstützung von IEEE 802.1Q VLAN-Tagging - Jumbo Frame-Unterstützung bis zu 16K   Hinweis 1: Für Linux und OSX wird die USB-SetConfig vom USB-Framework des Systems (USB-Host-Controller-Treiber und/oder USB-Bus-Treiber) verwaltet; dieses Verhalten kann dazu führen, dass der 2.5G-Ethernet-Adapter nicht in den automatischen Installationsmodus wechselt. Infolgedessen unterstützt der 2,5G-Ethernet-Adapter den Auto-Installationsmodus nur unter Windows. Für Linux unterstützt der 2.5G-Ethernet-Adapter einen integrierten In-House/ECM/NCM-Treiber. Für OSX unterstützt der 2.5G-Ethernet-Adapter einen integrierten ECM/NCM-Treiber; Benutzer können auch einen Inhouse-Treiber installieren. Anmerkung 2: Microsoft Wake Packet Detection (WPD) zur Bereitstellung von Wake-Up Frame-Informationen für das Betriebssystem, z.B. PatternID, OriginalPacketSize, SavedPacketSize, SavedPacketOffset, usw. WPD hilft, das unerwünschte/unautorisierte Aufwecken eines schlafenden Computers zu verhindern. Einzelheiten finden Sie in der Schnittstellenspezifikation für die Microsoft Wake Packet Detection (WPD) (http://msdn.microsoft.com/en- us/library/hh440160(v=vs.85).aspx). Anmerkung 3: 'RealWoW! (Wake - On - WAN) Technologie ermöglicht es dem 2.5G Ethernet-Adapter, keep-alive-Pakete an den Wake-Server zu senden, wenn sich der PC im Ruhezustand befindet. RealWoW! kann Wake-up-Pakete durch ein NAT-Gerät (Network Address Translation) leiten. Diese Funktion ermöglicht es PCs, den Stromverbrauch zu reduzieren, indem sie bis zu ihrer Verwendung im energiesparenden Ruhezustand bleiben. Benutzer können sich über das Internet in den Wake-Server einloggen, um den ausgewählten schlafenden PC zu wecken.  Bei der ersten Benutzung ist die Registrierung der Kontoinformationen auf dem Wake-Server erforderlich.

TECHNISCHE DATEN LAN-Standard Fast Ethernet Bus PCI 32 Bit LAN-Controller Realtek 8139D Wake-on-LAN Ja BootROM-Sockel Ja LED-Anzeigen 2xLEDs Standards/Spezifikationen IEEE 802.3u; IEEE 802.3; PCI 2.1   LAN-ANSCHLÜSSE RJ45 1   ÜBERTRAGUNGSRATE 10 Mbps 10BaseT 100 Mbps 100BaseTX Vollduplex Ja   STROMVERSORGUNG Bus-Powered Ja   SOFTWARE Treiber Windows; NetWare; UNIX; Linux; Mac OS   ALLGEMEINE DATEN Kennzeichnung FCC; CE Herstellergarantie 36 Monate   LIEFERUMFANG Verpackungen Retail Lieferumfang Handbuch   BESONDERHEITEN Andere Merkmale NWay Auto-Negotiation Data Transfer Mode Busmaster

Description: ALLNET ALL0137-1-40G-QSFP+ 40 Gigabit Ethernet PCI Express server adapter is designed for Servers and high-end appliances. ALL0137-1-40G-QSFP+ offer simple integration into any PCI Express X8 to 40Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.   ALLNET ALL0137-1-40G-QSFP+ is based on Intel XL710AM1 Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation. ALLNET ALL0137-1-40G-QSFP+ is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.   Key Features: Performance Features: Support for jumbo frame up to 9.5KB Flow control support Priority Flow Control (draft IEEE 802.1Qbb) Enhanced Transmission Selection (draft IEEE802.1az) Statistics management and RMON 802.1q VLAN support DCB/DCB-X support Message Signal interrupts (MSI-X) Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FcoE   Host Interface: PCI Express X8 lanes Support PCI Express Base Specification 3.0 (8GT/sec)   LAN and Virtualization Features: Network Virtualization offloads for VXLAN and NVGRE Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE) Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh Physical Functions – Up to 8 per port, up to 16 per device Support for 128 Virtual Device Queues (VMDq) per port Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA) Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)   TCP/IP/L2 features: Receive Side Scaling (RSS) Large Send Offload (LSO) TCP/UDP/IP/SCTP Checksum Offload IPV4, IPV6   Technical Details: QSFP+ 40Gigabit Ethernet Technical Specifications Adapter: QSFP+ (Quad Small Formfactor Pluggable) supports: XLPPI interfaces supports 40GBase-R PCS and 40 Gigabit PMA in order to connect with QSFP+ to 40GBase-SR4 / 40GBase-LR4 / 40G Direct Attach Cable IEEE Standard /Network topology: with 40GBase-SR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-SR4 (850nm LAN PHY). IEEE Standard /Network topology: with 40GBase-LR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-LR4 (1310nm LAN PHY) Operating Systems Support Operating system support: Windows Linux General Technical Specifications Interface Standard: PCI-Express Base Specification Revision 3.0 (8 GT/sec) Board Size: 165mm X 69mm(6.496 X 2.717) PCB thickness is 0.062 inch PCI Express Card Type: X8 Lane PCI Express Voltage +12V +- 8% PCI Connector: X8 Lane Controller: Intel XL710AM1 Holder: Metal Bracket Weight: 130gr (4.568 oz) Power Consumption 3.600W Operating Humidity: 0%–90%, non-condensing Operating Temperature: 0°C – 45°C (32°F – 113°F) Storage: -40°C–65°C (-40°F–149°F) EMC Certifications: FCC PART 15B EN 55022: 2010 EN 55024: 2010 EN 61000-3-2:2014 EN 61000-3-3:2013 LEDs LEDs: Link 10G :Green Link 40G: Yellow Act: Blue;Blink on Activity   Connectors: (1) QSFP+ cage: MOLEX, P/N 75586-0010, or compatible.

Description: ALLNET ALL0137-2-40G-QSFP+, Dual QSFP+ Fiber 40 Gigabit Ethernet PCI Express server adapter is designed for Servers and high-end appliances. ALL0137-2-40G-QSFP+ offer simple integration into any PCI Express X8 to 40Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. ALLNET ALL0137-2-40G-QSFP+ is based on Intel XL710AM2 Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation. ALLNET ALL0137-2-40G-QSFP+ is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.   Key Features Performance Features: Support for jumbo frame up to 9.5KB Flow control support Priority Flow Control (draft IEEE 802.1Qbb) Enhanced Transmission Selection (draft IEEE802.1az) Statistics management and RMON 802.1q VLAN support DCB/DCB-X support Message Signal interrupts (MSI-X) Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FcoE   Host Interface: PCI Express X8 lanes Support PCI Express Base Specification 3.0 (8GT/sec)   LAN and Virtualization Features: Network Virtualization offloads for VXLAN and NVGRE Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE) Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh Physical Functions – Up to 8 per port, up to 16 per device Support for 128 Virtual Device Queues (VMDq) per port Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA) Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)   TCP/IP/L2 features: Receive Side Scaling (RSS) Large Send Offload (LSO) TCP/UDP/IP/SCTP Checksum Offload IPV4, IPV6 Technical Details: QSFP+ 40Gigabit Ethernet Technical Specifications Adapters: QSFP+ (Quad Small Formfactor Pluggable) supports: XLPPI interfaces supports 40GBase-R PCS and 40 Gigabit PMA in order to connect with QSFP+ to 40GBase-SR4 / 40GBase-LR4 / 40G Direct Attach Cable IEEE Standard /Network topology: with 40GBase-SR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-SR4 (850nm LAN PHY). IEEE Standard /Network topology: with 40GBase-LR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-LR4 (1310nm LAN PHY) Operating Systems Support Operating system support: Windows Linux General Technical Specifications Interface Standard: PCI-Express Base Specification Revision 3.0 (8 GT/sec) Board Size: 165mm X 69mm(6.496 X 2.717) PCB thickness is 0.062 inch PCI Express Card Type: X8 Lane PCI Express Voltage +12V +- 8% PCI Connector: X8 Lane Controller: Intel XL710AM2 Holder: Metal Bracket Weight: 170 gr (5.997 oz) Power Consumption: 2.880 W Operating Humidity: 0%–90%, non-condensing Operating Temperature: 0°C – 45°C (32°F – 113°F) Storage: -40°C–65°C (-40°F–149°F) EMC Certifications: FCC PART 15B EN 55022: 2010 EN 55024: 2010 EN 61000-3-2:2014 EN 61000-3-3:2013 LEDs LEDs: Link 10G: Green Link : 40GYellow Act: Blue;Blink on Activity Connectors: (2) QSFP+ cage: MOLEX, P/N 75586-0010, or compatible.

Heben Sie Ihre Endgeräte auf die nächste Geschwindigkeitsstufe. Native Treiberunterstützung macht die Installation sehr einfach. Schließen Sie einfach diesen USB-X-zu-Ethernet-Adapter an den USB-Port Ihres Laptops an und verbinden Sie ihn mit Ihrem Netzwerk. Der Realtek RTL8156-Chipsatz des Netzwerkadapters bietet native Treiberunterstützung für Mac OS und Linux. Alle Windows-Betriebssysteme ohne den Treiber werden automatisch aufgefordert, die Software direkt vom Adapter herunter zu laden, so dass eine schnelle Installation ohne Internet-Zugang gewährleistet ist. • Chipsatz: RTL8156X • Anschlüsse:     1 x USB 3.0 Typ A Stecker     1 x 2.5Gigabit LAN RJ45 Buchse • Datentransferraten:     Ethernet bis zu 10 Mb/s (Half/Full Duplex)     Fast Ethernet bis zu 100 Mb/s (Half/Full Duplex)     Gigabit bis zu 1000 Mb/s (Half/Full Duplex)     MultiGigabit bis zu 2500 Mb/s (Half/Full Duplex) • Unterstützt Auto MDIX (automatische Erkennung von Standard oder Crossover Netzwerkkabel) • Windows Vista, 8, 10, Mac OS, Linux kompatibel und Treiber verfügbar • PC oder Notebook mit einem freien USB 3.0 oder USB 2.0 Port     • Unterstützt WOL-Wake on Lan !! Merkmale - USB-Typ-A-zu-RJ45-Adapter unterstützt 2,5-Gigabit-Netzwerke überUSB 3.0 - IEEE 802.3bz (2,5GBASE-T)-kompatibel - Kompatibel mit IEEE 802.3i, 802.3u und 802.3ab (10BASE-T, 100BASE-TX und 1000BASE-T) - Stromversorgung direkt über die USB-Anschlüsse - Unterstützung von IEEE 802.1Q VLAN-Tagging - Jumbo Frame-Unterstützung bis zu 16K   Hinweis 1: Für Linux und OSX wird die USB-SetConfig vom USB-Framework des Systems (USB-Host-Controller-Treiber und/oder USB-Bus-Treiber) verwaltet; dieses Verhalten kann dazu führen, dass der 2.5G-Ethernet-Adapter nicht in den automatischen Installationsmodus wechselt. Infolgedessen unterstützt der 2,5G-Ethernet-Adapter den Auto-Installationsmodus nur unter Windows. Für Linux unterstützt der 2.5G-Ethernet-Adapter einen integrierten In-House/ECM/NCM-Treiber. Für OSX unterstützt der 2.5G-Ethernet-Adapter einen integrierten ECM/NCM-Treiber; Benutzer können auch einen Inhouse-Treiber installieren. Anmerkung 2: Microsoft Wake Packet Detection (WPD) zur Bereitstellung von Wake-Up Frame-Informationen für das Betriebssystem, z.B. PatternID, OriginalPacketSize, SavedPacketSize, SavedPacketOffset, usw. WPD hilft, das unerwünschte/unautorisierte Aufwecken eines schlafenden Computers zu verhindern. Einzelheiten finden Sie in der Schnittstellenspezifikation für die Microsoft Wake Packet Detection (WPD) (http://msdn.microsoft.com/en- us/library/hh440160(v=vs.85).aspx). Anmerkung 3: 'RealWoW! (Wake - On - WAN) Technologie ermöglicht es dem 2.5G Ethernet-Adapter, keep-alive-Pakete an den Wake-Server zu senden, wenn sich der PC im Ruhezustand befindet. RealWoW! kann Wake-up-Pakete durch ein NAT-Gerät (Network Address Translation) leiten. Diese Funktion ermöglicht es PCs, den Stromverbrauch zu reduzieren, indem sie bis zu ihrer Verwendung im energiesparenden Ruhezustand bleiben. Benutzer können sich über das Internet in den Wake-Server einloggen, um den ausgewählten schlafenden PC zu wecken.  Bei der ersten Benutzung ist die Registrierung der Kontoinformationen auf dem Wake-Server erforderlich.

Heben Sie Ihre Endgeräte auf die nächste Geschwindigkeitsstufe. Native Treiberunterstützung macht die Installation sehr einfach. Schließen Sie einfach diesen USB-C-zu-Ethernet-Adapter an den USB-Port Ihres Laptops an und verbinden Sie ihn mit Ihrem Netzwerk. Der Realtek RTL8156-Chipsatz des Netzwerkadapters bietet native Treiberunterstützung für Mac OS und Linux. Alle Windows-Betriebssysteme ohne den Treiber werden automatisch aufgefordert, die Software direkt vom Adapter herunter zu laden, so dass eine schnelle Installation ohne Internet-Zugang gewährleistet ist. • Chipsatz: RTL8156X • Anschlüsse:     1 x USB 3.0 Typ C Stecker     1 x 2.5Gigabit LAN RJ45 Buchse • Datentransferraten:     Ethernet bis zu 10 Mb/s (Half/Full Duplex)     Fast Ethernet bis zu 100 Mb/s (Half/Full Duplex)     Gigabit bis zu 1000 Mb/s (Half/Full Duplex)     MultiGigabit bis zu 2500 Mb/s (Half/Full Duplex) • Unterstützt Auto MDIX (automatische Erkennung von Standard oder Crossover Netzwerkkabel) • Windows Vista, 8, 10, Mac OS, Linux kompatibel und Treiber verfügbar • PC oder Notebook mit einem freien USB 3.0 oder USB 2.0 Port     • Unterstützt Wake on Lan !! Merkmale - USB-Typ-C-zu-RJ45-Adapter unterstützt 2,5-Gigabit-Netzwerke überUSB 3.0 - IEEE 802.3bz (2,5GBASE-T)-kompatibel - Kompatibel mit IEEE 802.3i, 802.3u und 802.3ab (10BASE-T, 100BASE-TX und 1000BASE-T) - Stromversorgung direkt über die USB-Anschlüsse - Unterstützung von IEEE 802.1Q VLAN-Tagging - Jumbo Frame-Unterstützung bis zu 16K Hinweis 1: Für Linux und OSX wird die USB-SetConfig vom USB-Framework des Systems (USB-Host-Controller-Treiber und/oder USB-Bus-Treiber) verwaltet; dieses Verhalten kann dazu führen, dass der 2.5G-Ethernet-Adapter nicht in den automatischen Installationsmodus wechselt. Infolgedessen unterstützt der 2,5G-Ethernet-Adapter den Auto-Installationsmodus nur unter Windows. Für Linux unterstützt der 2.5G-Ethernet-Adapter einen integrierten In-House/ECM/NCM-Treiber. Für OSX unterstützt der 2.5G-Ethernet-Adapter einen integrierten ECM/NCM-Treiber; Benutzer können auch einen Inhouse-Treiber installieren. Anmerkung 2: Microsoft Wake Packet Detection (WPD) zur Bereitstellung von Wake-Up Frame-Informationen für das Betriebssystem, z.B. PatternID, OriginalPacketSize, SavedPacketSize, SavedPacketOffset, usw. WPD hilft, das unerwünschte/unautorisierte Aufwecken eines schlafenden Computers zu verhindern. Einzelheiten finden Sie in der Schnittstellenspezifikation für die Microsoft Wake Packet Detection (WPD) (http://msdn.microsoft.com/en- us/library/hh440160(v=vs.85).aspx). Anmerkung 3: 'RealWoW! (Wake - On - WAN) Technologie ermöglicht es dem 2.5G Ethernet-Adapter, keep-alive-Pakete an den Wake-Server zu senden, wenn sich der PC im Ruhezustand befindet. RealWoW! kann Wake-up-Pakete durch ein NAT-Gerät (Network Address Translation) leiten. Diese Funktion ermöglicht es PCs, den Stromverbrauch zu reduzieren, indem sie bis zu ihrer Verwendung im energiesparenden Ruhezustand bleiben. Benutzer können sich über das Internet in den Wake-Server einloggen, um den ausgewählten schlafenden PC zu wecken.  Bei der ersten Benutzung ist die Registrierung der Kontoinformationen auf dem Wake-Server erforderlich.

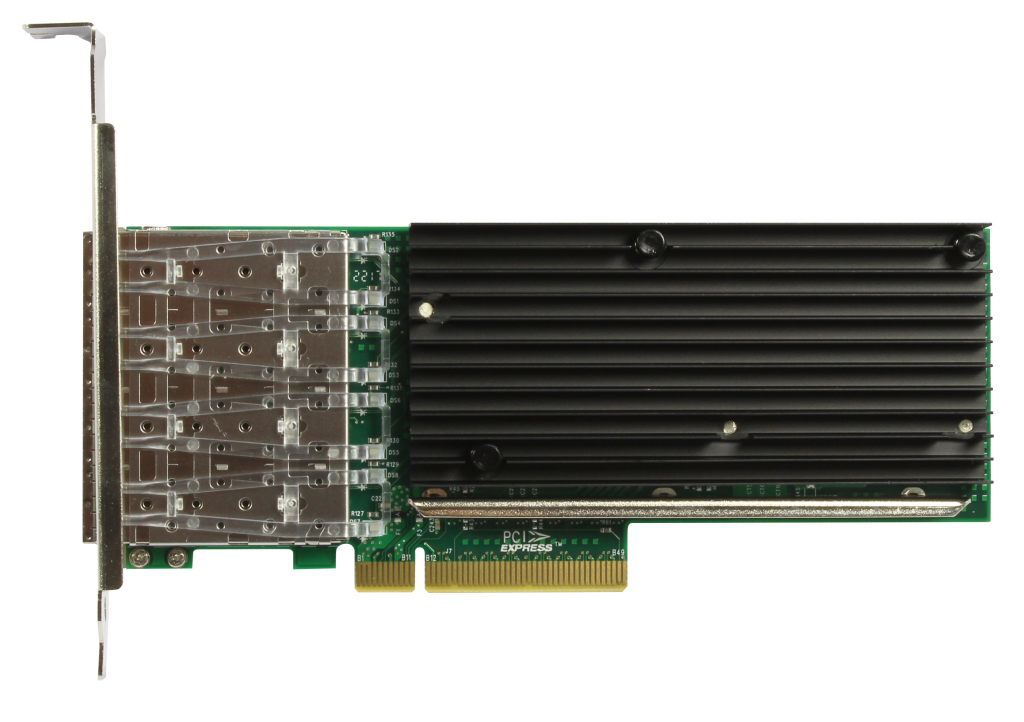

Highlights: Quad-port 10GbE SFP+ server adapters PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes SFP+ Connectivity PXE,iSCSI boot Network Virtualization IEEE 802.1q and 10G Ethernet specification compliance Data Plane Development Kit (DPDK) support Excellent small packet performance for network appliances and Network Functions Virtualization (NFV) Low Profile and Full-Height bracket Overview:                                      ALL0141-4SFP+-10G is  ALLNET  a  new generation  of high- performance  server  adapter,  based  on  the  Intel  XL710-BM1  controller.  The  Server  Adapter  addresses  the demanding  needs  of  the  next-generation  agile data center by providing unmatched features for both server and network  virtualization,  flexibility  for  LAN  and  SAN networks and proven, reliable performance. The ALL0141-4SFP+-10G adapter delivers superior performance  in  a  PCI  Express  v3.0  x8  slot.  Optimized performance vectors and key uses include: Small Packet Performance: Achieves wire-rate throughput on smaller payload sizes (>128 Bytes for 40 GbE and >64 Bytes for 10 GbE) Bulk Transfer Performance: Delivers line-rate performance with low CPU usage for large application buffers Network Virtualization: Network virtualization overlay offloads including Geneve, VXLAN, and NVGRE Storage Performance: Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI and FCoE) Key Features                                Quad –Port 10GbE Server Adapter PCI Express* (PCIe) 3.0, x8 Exceptional Low Power Adapters Network  Virtualization  offloads  including  Geneve, VXLAN and NVGRE Intel® Ethernet Flow Director for hardware based application traffic steering Intel® Data Plane Developer Kit (DPDK) optimized for efficient packet processing Excellent small packet performance for network appliances and Network Function Virtualization (NFV) Intelligent offloads to enable high performance with Intel® Xeon® processor-based servers I/O virtualization innovations for maximum performance in a virtualized server Unified networking providing a single wire support for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)   A Complete, Unified Networking Solution Converging data and storage onto one fabric eliminates the need for multiple adapters, cables and switches. Furthermore both 10 and 40 gigabit Ethernet provides the bandwidth to converge these multiple fabrics onto a single wire. A key capability that makes all this possible is traffic class separation provided by Data Center Bridging (DCB) providing a one-wire solution with virtual pipes for the different classes of traffic: Data: Best effort delivery of standard LAN traffic Storage: Lossless network for FCoE and iSCSI Management: Guaranteed connectivity of data center IP management Power Savings  Power efficiency is critical to IT specialists as energy consumption is a real OpEx concern. Lowest Power Consumption The new generation of ALL0141-4SFP+-10G adapters are power  misers.  They  deliver  double  the  throughput  with only half the power of the previous Energy Efficient Ethernet (EEE) Reduces power consumption during periods of low data activity.  Energy  is  used  to  maintain  the  physical  layer transmitters in a “ready state” to transmit data on the wire. During periods of low data traffic, EEE sends a low-power- idle signal to put the transmitters into a “low power state” saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance.   Server Virtualization                   With the INTEL Virtualization Technology (VT), the ALL0141-4SFP+-10Gadapter deliver outstanding I/O performance  in  virtualized  server  environments.  They reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), enabling near- native  performance  and  VM  scalability.  The  host-based virtualization technologies supported by Intel VT include: VMDq for Emulated Path: Adapter-based VM Queue sorting enabling efficient hypervisor-based switching SR-IOV for Direct Assignment: Adapter-based isolation and switching for various virtual station instances enabling optimal CPU usage ind virtualized environments.  Additionally,  ALL0141-4SFP+-10G provide Virtual Bridging support that delivers both host-side and switch-side control and management of virtualized I/O as well as the following modes of virtualized operation: VEPA : IEEE 802.1Qbg support for Virtual Ethernet Port Aggregator VEB: Virtual Ethernet Bridge support via Intel® VT Network Virtualization                 Network virtualization is the next big trend in creating an agile data center.   The   ALL0141-4SFP+-10Gadapter is ready to help you take that next step. VXLAN, NVGRE, GENEVE Offloads: With Intel Virtualization Technologyperformance for overlay networks. With these offloads it is possible to distribute network traffic across CPU cores. At the same time XL710 offloads LSO, GSO, and check-sum from the host software reducing CPU overhead. Intel® Ethernet Flow Director       Flow Director is an advanced traffic steering capability built  into  the  XL710  controller.  It  consists  of  a  large number of flow affinity filters that direct receive packets by their flows to queues for classification, load balancing, and matching between flows and CPU cores. It eliminates context  switching  required  within  the  CPU.  As  a  result, Flow Director significantly increasing the number of transactions per second and reduces latency for cloud applications like Memcached. Intelligent Offloads                                   The Intel Xeon processor family has demonstrated increased computing performance and increased integration of key server subsystems generation after generation. To offload is to leverage the ever-escalating computing power of the Xeon processor where appropriate and implementing complementary accelerations in the network controller—this is what Intel refers to as ”intelligent offloads.” By employing a balanced hybrid of compute  and  offload,  intelligent  offloads  are  able  to achieve the optimized point of performance and efficiency. This is most notably observed in the following usage models: TCP Stateless Offloads: Demonstrates  leading  performance  vs.  TOE  solutions without restricting feature usage (TOE usage usually requires  that  key  features  be  disabled).  Supported stateless offloads include Checksum, TSO, VMDq, and RSS. Host iSCSI /FCoE Initiators: Providing exceptional performance without the need for full-offload HBA2 methods. Flow Classification: Trafficking data flows across multiple consumers and connections. Manageability                                           ALL0141-4SFP+-10Galso incorporate the manageability required by IT personnel for remote control and alerting. Communication to the Board Management Controller (BMC) is available either through an on-board SMBus port or the DMTF-defined NC-SI, providing a variety of management protocols,  including  IPMI,  BMC  Pass-thru,  OS2BMC,  and MCTP/SMBus and MCTP/PCIe. Features General Intel® XL710-BM1 40 Gigabit Ethernet Controller SFP+ Connectivity Low-profile Full-height Load balancing on multiple CPUs iSCSI remote boot support Fibre Channel over Ethernet (FCoE) support Support for most network operating systems RoHS-compliant Intel® PROSet Utility for Windows*Device Manager Time Sync (IEEE 1588*, 802.1as) I/O Features for Multi-core Processor Servers Intel® Flow Director MSI-X support Multiple Queues: 1,536 Tx and Rx queues per port Tx/Rx  IP,  SCTP,  TCP,  &  UDP  checksum  offloading  (IPv4, IPv6) capabilities Virtualization Features                              Next-Generation VMDq Up to 256 maximum VMDq VMs supported PCI-SIG SR-IOV Implementation (128 per device) Virtual Machine Load Balancing(VLMB) Advanced Packet Filtering VLAN  support  with  VLAN  tag  insertion,  stripping  and packet filtering for up to 4096 VLAN tags VXLAN and NVGRE Support Manageability Features                             Preboote Xecution Environment (PXE) Support Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters iSCSI Boot Watchdog Timer Adapter Product Features                          Intel® PROSet Utility Plug and play specification support Receive Side Scaling Advanced Software Feature                      Adapter fault tolerance (AFT) Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug*/Active Periphera component interconnect (PCI) IEEE 802.1Q* VLANs IEEE 802.3 2005* flow control support Tx/Rx  IP,  TCP,  &  UDP  checksum  offloading  (IPv4,  IPv6) capabilities  (Transmission  control  protocol(TCP),  user datagram protocol (UDP), Internet protocol (IP) IEEE 802.1p* TCP segmentation large send offload MSI-X supports Multiple Independent Queues Interrupt moderation Ipv6 offloading — Checksum and segmentation capability extended to new standard packet type Network Operating Systems (NOS) Software Support Windows Server* 2012 R2; Windows Server 2012 R2 Core; Windows Server 2012; Windows Server 2012 Core; Windows Server 2008 R2; Windows Server 2008 R2 Core; Linux* Stable Kernel version 2.6.32/3x; Linux* RHEL 6.5 and RHEL 7.0; Linux* SLES 11 SP3 and SLES 12; FreeBSD* 9 and FreeBSD* 10; UEFI* 2.1; UEFI* 2.3; VMware ESXi 5.1 (Limited Functionality); Vmware ESXi 5.5   Technical Details:   Controller Intel XL710 Transmission Rate Per Port 10000Mbps Network Standard Physical Layer Interfaces 10GBASE-SR, 10GBASE-LR Jumbo Frame Support Up to 9.5 KB Operating Temperature 0? to 55?(32°F to 131°F) Network Virtualization VLAN, VLAN tag, VXLAN, NVGRE, GENEVE,VLMB LED Indicators Link Yellow,10Gb/s:Green blinking SYSTEM SUPPORT Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 R2 Windows 7 / 8 / 8.1 / 10 FreeBSD 11.0or later Linux SLES 11 / 12or later Linux Stable Kernel version 2.6.x/3.x/4.x or later VMware ESX/ESXi 5.x/6.x or later

TECHNISCHE DATEN LAN-Standard Fast Ethernet Bus PCI 32 Bit Wake-on-LAN Ja BootROM-Sockel Ja LED-Anzeigen 4xLEDs Standards/Spezifikationen PCI 2.1; IEEE 802.3u; IEEE 802.3 Management DMI; ACPI   LAN-ANSCHLÜSSE MT-RJ 1   ÜBERTRAGUNGSRATE 100 Mbps 100BaseFX Vollduplex Ja   STROMVERSORGUNG Bus-Powered Ja   SOFTWARE Treiber DOS; NetWare; Windows   ALLGEMEINE DATEN Kennzeichnung FCC Class B; CE Herstellergarantie Lebenslang Service Kostenfreier technischer Support Abmessungen (BxHxT) 107 x 19 x 153 mm Gewicht 120 g   LIEFERUMFANG Verpackungen Bulk Lieferumfang Netzwerkkarte   BESONDERHEITEN Andere Merkmale Port-Trunking (Port-Aggregation); Unicentre TNG Konfigurierbar Software Data Transfer Mode Busmaster _

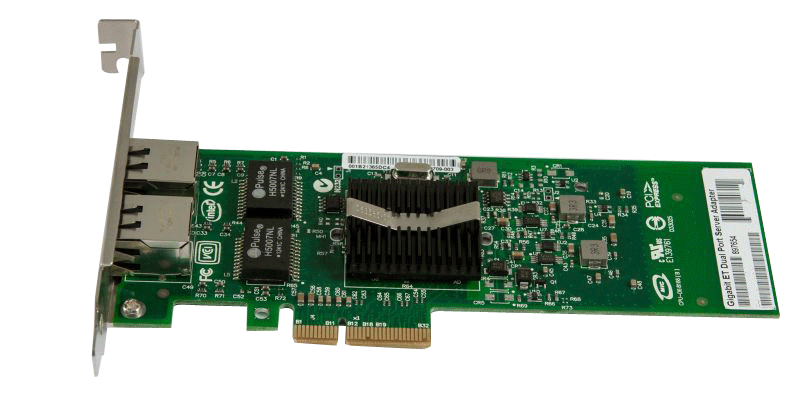

Highlights:Dual 10/100/1000 Mbit Ethernet Server AdapterIntel 82576 Gigabit Ethernet ControllerVirtual Machine Device Queues (VMDq) Intel I/O Acceleration Technology (Intel I/OAT 1)incl. Low Profile Bracket The ALL0133-2G-TX Multi-Port Server Adapter is PCIe GbE network adapters. Built with the Intel 82576  Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.   Designed for Multi-Core Processors These dual-port adapter provide high-performing, multi-port Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapters support different technologies such as multiple queues, receive-side scaling, MSI-X, and Low Latency Interrupts, that help in accelerating the data across the platform, thereby improving application response times. The I/O technologies on a multi-core platform make use of the multiple queues and multiple interrupt vectors available on the network controller. These queues and interrupt vectors help in load balancing the data and interrupts amongst themselves in order to lower the load on the processors and improve overall system performance. For example, depending upon the latency sensitivity of the data, the low level latency interrupts feature can bypass the time interval for specific TCP ports or for flagged packets to give certain types of data streams the least amount of latency to the application. Optimized for Virtualization   The ALL0133-2G-TX Multi-Port Server Adapter showcase the latest virtualization technology called Intel® Virtualization Technology for Connectivity (Intel® VT for Connectivity).IntelVTfor Connectivity is a suite of hardware assists that improve overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency, and improves I/O through- put.IntelVTfor Connectivity includes: ? Virtual Machine Device Queues (VMDq) ? Intel I/O Acceleration Technology1  (Intel I/OAT) Use of multi-port adapters in a virtualized environment is very important because of the need to provide redundancy and data connectivity for the applications/workloads in the virtual machines. Due to slot limitations and the need for redundancy and data connectivity, it is recommended that a virtualized physical server needs at least six GbE ports to satisfy the I/O requirement demands. Virtual Machine Device queues (VMDq)   VMDq reduces I/O overhead created by the hypervisor in a virtualized server by performing data sorting and coalescing in the network silicon.2  VMDq technology makes use of multiple queues in the network controller. As data packets enter the network adapter, they are sorted, and packets traveling to the same destination (or virtual machine) get grouped together in a single queue. The packets are then sent to the hypervisor, which directs them to their respective virtual machines. Relieving the hypervisor of packet filtering and sorting improves overall CPU usage and throughput levels. The ALL0133-2G-TX PCIe Gigabit adapter provides improved performance with the next-generation VMDq technology, which includes features such as loop back functionality for inter-VM communication, priority-weighted bandwidth management, and doubling the number of data queues per port from four to eight. It now also supports multicast and broadcast data on a virtualized server. Intel I/O Acceleration Technology   Intel I/O Acceleration Technology (Intel I/OAT) is a suite of fea- tures that improves data acceleration across the platform, from networking devices to the chipset and processors, which help to improve system performance and application response times. The different features include multiple queues and receive-side scaling, Direct Cache Access (DCA), MSI-X, Low-Latency Inter- rupts, Receive Side Scaling (RSS), and others. Using multiple queues and receive-side scaling, a DMA engine moves data using the chipset instead of the CPU. DCA enables the adapter to pre-fetch data from the memory cache, thereby avoiding cache misses and improving application response times. MSI-X helps in load-balancing I/O interrupts across multiple processor cores, and Low Latency Interrupts can provide certain data streams a non-modulated path directly to the application. RSS directs the interrupts to a specific processor core based on the application?s address. End-to-end Wired Security   The ALL0133-2G-TX Multi-Port Server Adapter is PCIe adapters to provide authentication and encryp- tion for IPsec and LinkSec. LinkSec is already designed into the network adapter hardware. These adapters are future-proof and prepared to provide LinkSec functionality when the ecosystem supports this new technology. IPsec provides data protection between the end-point devices of a network communication session. The IPsec offload feature is designed to offload authentication and encryption of some types of IPsec traffic and still delivers near line-rate throughput and reduced CPU utilization. LinkSec is an IEEE industry-standard feature that provides data protection in the network. The IEEE 802.3ae and IEEE 802.3af protocols provide hop-to-hop data protection between two network devices in the transaction line between the host and destination. The two network devices must support the LinkSec technology. The network devices could be servers, switches, and routers. Network Operating Systems (NOS) Software Support   Windows*Vista* SP1; Windows Server* 2003 SP2; Windows* Unified Storage Solution 2003; Windows Server* 2008; Linux* Stable Kernel version 2.6; Linux* RHEL 4; Linux* RHEL 5; Linux* SLES 9; Linux* SLES 10; FreeBSD* 7.0; UEFI* 1.1; VMware ESX* 3.x

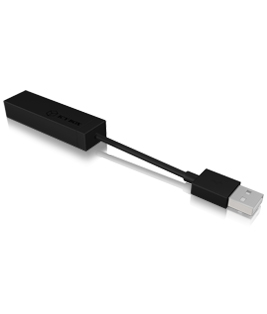

Haupteigenschaften ? USB 2.0 Typ-A zu RJ-45 Ethernet Port ? USB 2.0 bis 480Mbit/s ? LAN Transferrate: 10/100 Mbit/s ? Unterstützt IEEE 802.3, 802.3u standards ? Kompakte Bauweise ? Unterstützt Windows, Mac OS, Linux

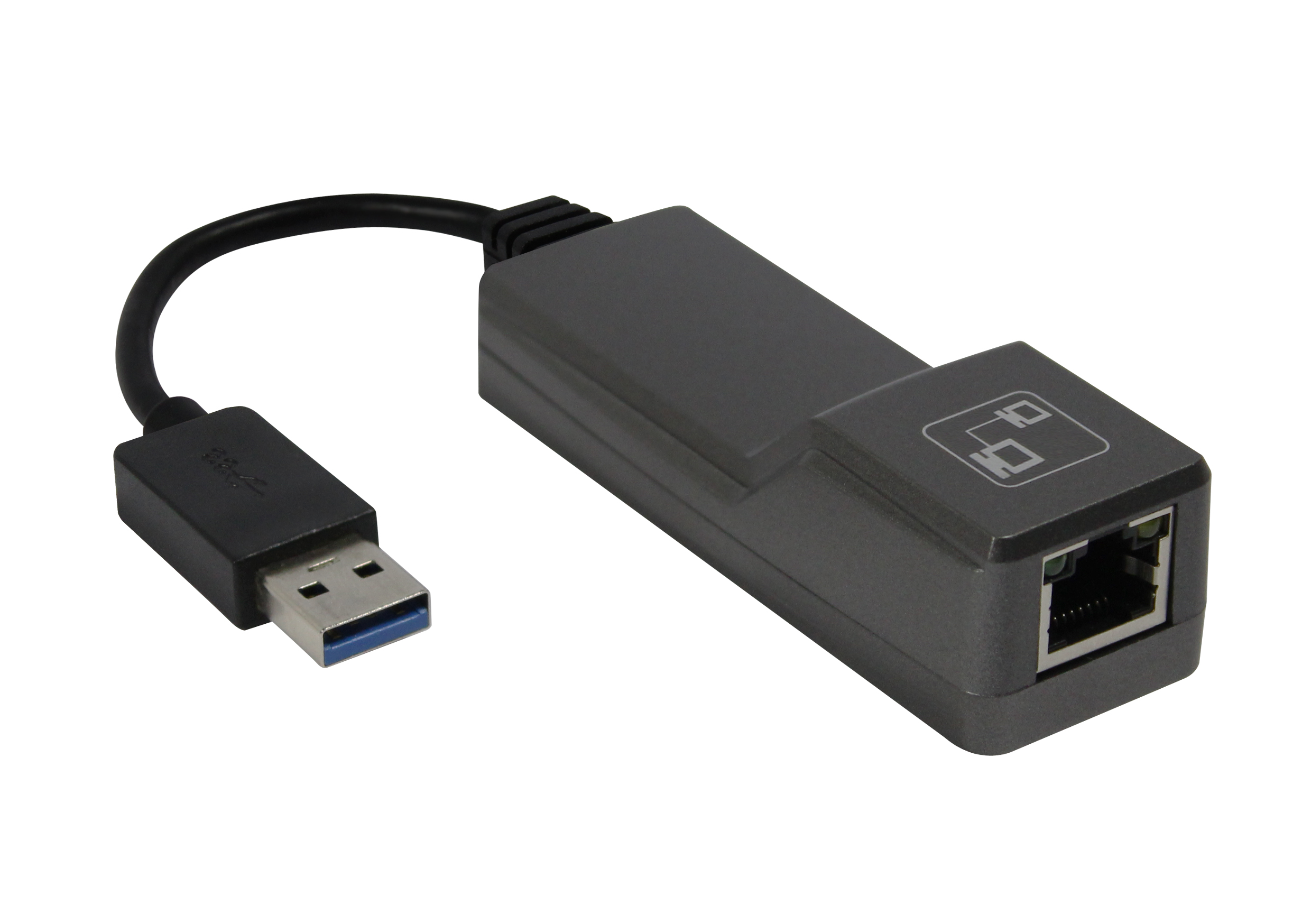

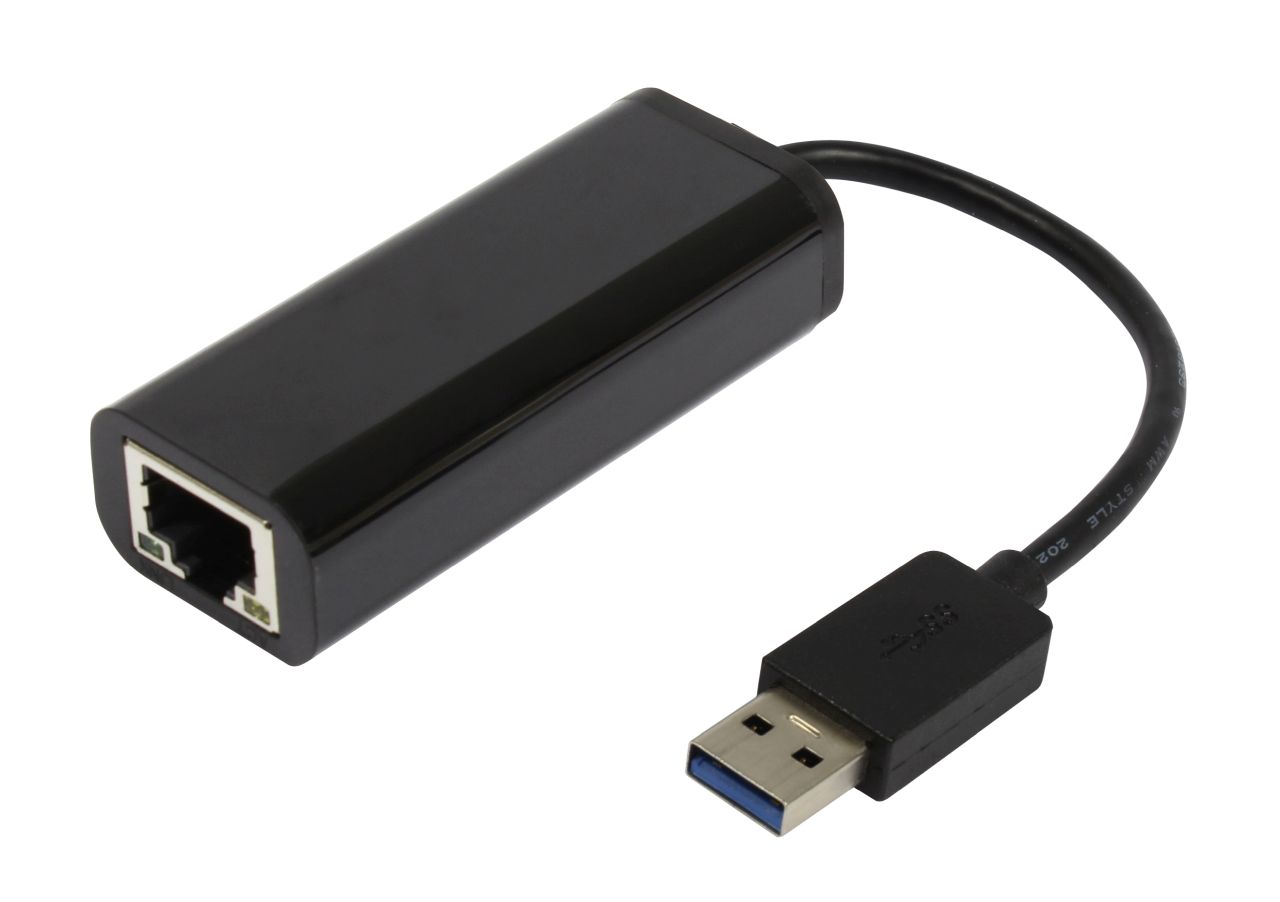

Highlights: Erweitern Sie ihr Laptop oder Tablet über eine USB 3.0-Anschluss um eine Netzwerk Gigabit Schnittstelle.  Native Treiberunterstützung (Windows, Mac und Chrome OS) durch integrierten Realtek RTL8153 Chipset Bietet zuverlässigen kabelgebundenen Netzwerkzugang mit einem 10/100/1000 RJ45 Ethernet-Anschluss, der mit IEEE kompatibel ist USB-betrieben für einfache Portabilität Automatische MDIX-Unterstützung & Unterstützung von Vollduplex-Flusssteuerung VLAN Konfiguration möglich mit Boardmitteln oder mit Realtek Software Unterstütztes Betriebssystem: Windows 7, 8, 8.1, 10 | Mac OS X 10.7 bis 10.15 | Linux Kernel 2.6.25 bis 4.11.x Nur LTS-Versionen Erhalten Sie schnellen, zuverlässigen Netzwerkzugang für Ihr MacBook, Chromebook™ oder Tablet, auch wenn es keinen Ethernet-Anschluss hat. Dieser USB 3.0-zu-Gigabit-Netzwerkadapter fügt Ihrem Computer über Ihren USB 3.0-Anschluss einen einzigen RJ45-Ethernet-Anschluss hinzu. Er lässt sich sofort installieren - ohne dass ein Treiber erforderlich ist. Dieser kompakte und tragbare USB-Netzwerkadapter ist das ideale Laptop-Zubehör. Sie müssen keinen Stromadapter bei sich tragen, um ihn zu verwenden, da er direkt über den USB-Host-Anschluss mit Strom versorgt wird. Der USB 3.0-Netzwerkadapter ist ideal für den Einsatz im Büro oder zu Hause und unterstützt die volle Gigabit-Bandbreite, indem er die Leistung von USB 3.0 (5 Gbit/s) nutzt. Sie können über ein Gigabit-Netzwerk schnell auf sehr große Dateien zugreifen und so jeden Tag wertvolle Zeit sparen. Der Realtek-Chipsatz gibt Ihnen die Gewissheit einer zuverlässigen Leistung. Schnell einsatzbereit. Schließen Sie diesen Ethernet-Kabeladapter einfach an den USB-Port Ihres Laptops an und verbinden Sie ihn mit Ihrem Netzwerk. Der Netzwerkadapter-Chipsatz bietet native Treiberunterstützung, so dass Sie sich nicht um die Installation zusätzlicher Software kümmern müssen. Technical Details: Category Element Spezifikation Connector(s) Connector Type(s) 1 - USB Type-A (9 pin) USB 3.0 (5 Gbps) 1 - RJ-45 Environmental Operating Temperature 0°C to 70°C (32°F to 158°F) Storage Temperature -55°C to 125°C (-67°F to 257°F) Humidity 20% ~ 90% Hardware Ports 1 Interface USB 3.0 Bus Type USB 3.0 Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX and IEEE 802.3X Full Duplex Chipset ID Realtek - RTL8153 Indicators LED Indicators 1 - Power - blue 1 - Link - green 1 - Activity - amber Packaging Information Package Dimmension     Shipping (Package) Weight   Performance Maximum Data Transfer Rate 1 Gbps - Full Duplex Gigabit Ethernet   Max Distance 100 m / 330 ft   Type and Rate USB 3.0 - 5 Gbit/s   Surge Protection Yes   Compatible Networks 10/100/1000 Mbps   Auto MDIX Yes   Full Duplex Support Yes Physical Characteristics Form Factor Attached Cable   Weight of Product     Color Black   Material Plastic   Cable Length     Product Dimmension   Software OS Compatibility Windows® 7, 8, 8.1, 10 Mac OS X® 10.7 to 10.15 Linux Kernel 2.6.25 to 4.11.x LTS Versions only Chrome OS® What's in the Box Included in Package 1 - USB 3.0 Gigabit NIC

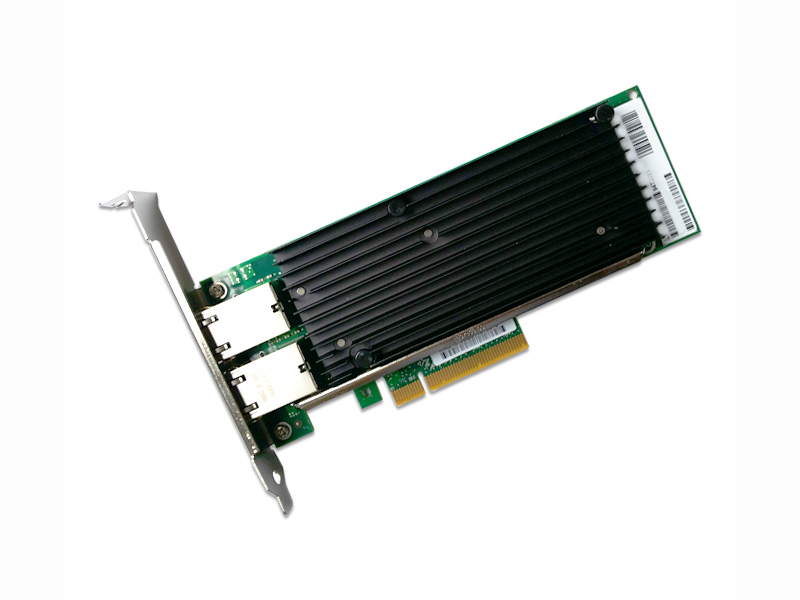

10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning. 10 Gigabit for the Broad Market The ALL0139-2-10G-TX is the latest innovation in Intel's leadership to drive 10 Gigabit Ethernet into the broader server market. This adapter hosts Intel's latest Ethernet silicon, the Intel Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms. 10GBASE-T Simplifies the Transition to 10 GbE The ALL0139-2-10G-TX 10GBase-T works with existing networks today. It works with legacy Gigabit Ethernet (GbE) switches and Cat 6A cabling. Install the ALL0139-2-10G-TX 10GBase-T adapter into a server and the auto-negotiation between 1 GbE and 10GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10GbE. 10GBASE-T uses the copper twisted pair cables that are very familiar to IT professionals today. It is everything you know and love about 1000BASE-T. The knowledge, training and investment in BASE-T are preserved. 10GBASE-T is the easiest and most versatile 10 GbE and you can deploy it anywhere in your data center. Its flexible reach from 1 meter to 100 meters supports the latest network architectures including Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR). 10G Performance at Low Cost and Low Power The ALL0139-2-10G-TX 10GBase-T adapter is the lowest cost way to deploy 10 GbE in your data center today. The ALL0139-2-10G-TX uses low cost, Cat 6 and Cat 6A cabling. Chances are this cabling already exists in the data center. A way for Intel to reduce cost and power is to integrate components into a single- chip solution. Of course, integration is what Intel does best. With the new Intel X540 Controller, the MAC and the PHY are integrated into a single-chip solution. So, why is integration important? First, integration translates to lower power. A single-chip solution simply uses less power than two separate components. This means no more active heat sink and reduces the per-port power consumption. Second, integration also means lower cost per port. Manufacturing a single part costs less than two. When cabling is accounted for, cost efficiencies realized from a single part mean 10GBASE-T is the lowest cost media to deploy. With lower cost and power, 10GBASE-T is ready for broad deployment. 10GBASE-T is an option for every rack and tower server in the data center. The wait for a low cost 10 GbE copper solution to broadly deploy 10 GbE to all corners of the data center is over. The ALL0139-2-10G-TX 10GBase-T adapter  provides bandwidth-intensive applications with highly affordable 10 GbE network performance and cost-effective RJ-45 connectivity for distances up to 100 meters. Exciting New data Center usage Models More than simply a 10x increase in performance, with 10GbE there are exciting new usage models that are now possible, including Unified Networking (iSCSI, FCoE and LAN), Virtualization (VMDq and SR- IOV), and now, Flexible Port Partitioning (FPP). Flexible I/O Virtualization Virtualization changes the way server resources are deployed and managed by running multiple applications and operating systems independently on a single server. The ALL0139-2-10G-TX 10GBase-T adapter includes Intel Virtualization Technology for connectivity (Intel VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the Intel X540 controller on the adapter. Intel I/O virtualization advances network connectivity models used in today's servers to more efficient models by providing FPP, multiple Rx/Tx queues, and on-controller QoS functionality that can be used in both virtual and non-virtual server deployments. Flexible Port Partitioning (FPP) By taking advantage of the PCI-SIG SR-IOV specification, Intel Ethernet products enable FPP. With FPP, virtual controllers can be used by the Linux* host directly and/or assigned to virtual machines. FPP allows you to use the functionality of SR-IOV to assign up to 63 processes per port to virtual functions in Linux. This enables an administrator to partition their 10 GbE bandwidth across multiple processes, ensuring a QoS by giving each assigned process equal bandwidth. Network administrators may also rate-limit each of these services to control how much of the 10GbE pipe is available to each process. Unified Networking Unified Networking solutions on the ALL0139-2-10G-TX 10GBase-T adapter let you combine the traffic of multiple data center networks like LAN and SAN onto a single efficient network fabric. You now have the choice of NFS, iSCSI, or Fibre Channel over Ethernet (FCoE) to carry both network and storage traffic at speeds of up to 10 Gbps. The ALL0139-2-10G-TX 10GBase-T adapter combines support for all of these traffic types in one adapter at no additional cost and with no additional licensing fees for the adapter. Intel's Unified Networking solutions are enabled through a combination of standard Intel Ethernet products along with trusted network protocols integrated in the operating systems. Thus, Unified Networking is available on every Server either through LAN-on-Motherboard (LOM) implementation or via an add-in Network Interface Card (NIC). Intel has delivered high quality Ethernet products for over 30 years and our Unified Networking solutions are built on the original principles that made us successful in Ethernet: Open Architecture integrates networking with the server, enabling IT managers to reduce complexity and overhead while enabling a flexible and scalable data centre network. Intelligent offloads lower cost and power while delivering the application performance that customers expect. Proven Ethernet unified Networking is built on trusted Intel Ethernet technology, enabling customers to deploy FCoE or iSCSI while maintaining the quality of their traditional Ethernet networks. iSCSi Simplifies SAN Connectivity iSCSI uses Ethernet to carry storage traffic, extending the familiarity and simplicity of Ethernet to storage networking, without the need for SAN-specific adapters or switches. ALL0139-2-10G-TX is the easiest, most reliable, and most cost-effective way of connecting servers to iSCSI SANs. Open FCoE Consolidates LANs and Legacy SANs Intel's Open FCoE solution enables ALL0139-2-10G-TX (adapters and controllers) to support Fibre Channel payload encapsulated in Ethernet frames. There is no upgrade charge for Open FCoE on the adapter. Just as with iSCSI, now customers can easily connect to an FCoE network with Intel 10 GbE solutions. For the first time, Open-FCoE is now supported on 10GBASE-T. As 10GBASE-T switches come to market enabled with FCoE support, the ALL0139-2-10G-TX is ready when you're ready. This enables you to use cost-effective 10GBASE-T for all your converged networking needs. The Open- FCoE architecture uses a combination of FCoE initiators in Microsoft Windows*and Linux* operating systems and in the VMware* ESXi hypervisor to deliver high-performance FCoE solutions using standard 10 GbE Ethernet adapters. This approach enables IT managers to simplify the data center and standardize on a single adapter for LAN and SAN connectivity. The ALL0139-2-10G-TX is designed to fully offload the FCoE data path to deliver full-featured converged network adapter (CNA) functionality without compromising on power efficiency and interoperability Data Center Bridging (DCB) delivers Lossless Ethernet Conventional Ethernet does not guarantee successful data delivery, which is not acceptable for SAN traffic. Ethernet enhancements such as Data Center Bridging (DCB) overcome that limitation with technologies that guarantee lossless delivery, congestion notification, priority-based flow control, and priority groups. The combination of 10 GbE and unified networking helps organizations overcome connectivity challenges and simplify the data center infrastructure. 10 GbE provides a simple, well-understood fabric for virtualized data centers, one that helps reduce cost and complexity as the number of virtual machines continues to grow. Order Information: M/N Model DesDescription LREALL0139-2-10G-TX PCI PCI Express x8 Dual Copper Port 10GBase-T Server Adapter (Intel X540AT2 Based) PS: Above details are only for reference, if there is any change, no prior notice.

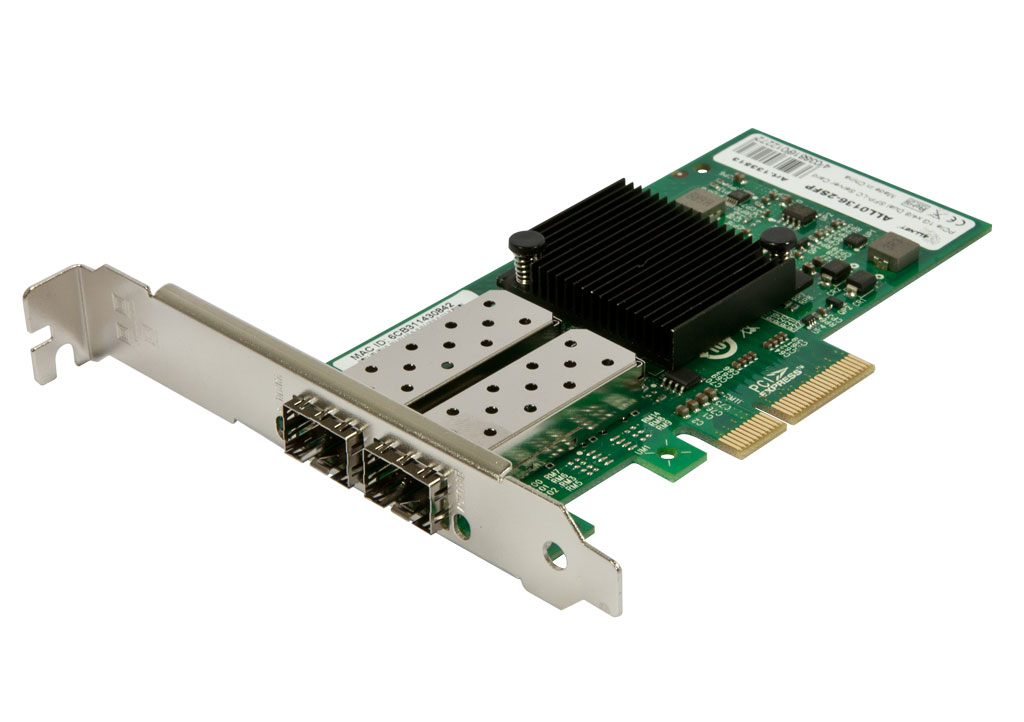

ALL0136-2SFP PCI Express PCIe x4 Dual SFP Port Gigabit Server Adapter (Intel I350 Based)   DUAL SFP port Gigabit Ethernet server adapters designed with performance enhancing features and new power management technologies   Key Features Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports Scalable iSCSI performance delivering cost-effective SAN connectivity High-performing bridgeless design supporting PCI Express- Gen 2.1 5GT/s Reliable and proven Gigabit Ethernet technology from Intel Corporation   Overview The new ALL0136-2SFP builds on Intels history of excellence in Ethernet products. Intel continues its market leadership with this new generation of PCIe- GbE network adapters. Built with the bridgeless Intel Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments.This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).   Flexible I/O Virtualization The ALL0136-2SFP includes Intel Virtualization Technology for connectivity (Intel VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the controller on the adapter.I/O virtualization advances network connectivity models used in todays servers to more efficient models by providing Flexible Port Partitioning (FPP), multiple Rx/Tx queues, and on- controller QoS functionality that can be used in both virtual and non-virtual server deployments.   By taking advantage of the PCI-SIG SR-IOV specification, Intel Ethernet products enable Flexible Port Partitioning (FPP). With FPP,virtual controllers can be used by the Linux- host directly and/or assigned to virtual machines.With this port partitioning,administrators can create up to eight dedicated connections on a single Ethernet port for use in baremetal and virtualized server deployments. In a bare-metal Linux server, host processes can be assigned to dedicated network resources to provide traffic isolation and balanced bandwidth allocation. In a virtualized environment, a VM can be assigned to a virtual controller to reduce the CPU overhead seen when using a software-based network bridge by offloading network traffic management to the controller.   Scalable iSCSI Performance An ALL0136-2SFP with native iSCSI initiators built into Microsoft- Windows-, Linux-, and VMware- ESX platforms provides a simple, dependable, cost-effective way to connect to iSCSI SANs. These native initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability and ease of use. Standardizing on Intel Ethernet Adapters for iSCSI enables administrators to use a single initiator, TCP/IP stack, and a common set of management tools and IT policies.In addition,Intel Ethernet Server Adapters include a number of hardware features designed to accelerate iSCSI traffic and enhance data processing. For example,TCP segmentation offload and checksum offload capabilities help reduce processor usage, increase throughput, and deliver exceptional iSCSI performance. Finally, using native OS initiators, an ALL0136-2SFP supports the CRC-32 digest instruction set included with Intel Xeon processor products,which improves transmission reliability and delivers an enterprise-class iSCSI solution.   Power Management Technologies Today, companies everywhere are looking for ways to decrease energy consumption across the enterprise to reduce costs and environmental impact, while at the same time solving increasingly important power density challenges. Thats why Intel has introduced new, advanced Power Management Technologies (PMTs)with the ALL0136-2SFP that enable enterprises to configure power options on the adapter and more effectively manage their power consumption.   Energy Efficient Ethernet (EEE) The ALL0136-2SFP supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard so that, during periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state.This reduces the controller power to approximately 50% of its normal operating power, saving power on the network port and the switch port. As oon as increased network traffic is detected, the controller and the switch quickly come back to full power to handle the increased network traffic. EEE is supported for both 1000BASE-T and100BASE-TX.   DMA Coalescing Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically, when a packet arrives at a server, DMA calls are made to transfer the packet within the server. These calls wake up the processor, memory and other system components from a lower power state in order to perform the tasks required to handle the incoming packet. Based on the configurable DMAC settings, incoming packets are buffered momentarily before any DMA calls are made. This enables the controller to intelligently identify opportunities to batch multiple packets together so that when components are wakened from lower power states they can efficiently handle the batched packets at the same time. This enables platform components to remain in lower power states longer, which can dramatically reduce platform energy consumption. DMAC synchronizes DMA calls across all controller ports to ensure maximum power savings.   Software Tools and Management Intel Advanced Network Services (Intel ANS) include new teaming technologies and techniques such as Virtual Machine Load-Balancing (VMLB) for Hyper-V environments. Today, Intel ANS includes a variety of teaming configurations for up to eight adapters, support for mixed vendors server adapters teaming and includes support for 802.1q VLANs, making Intel ANS one of the most capable and comprehensive tools for supporting server adapter teaming. Additionally, Intel PROSet for Windows- Device Manager and PROset CL extends driver functionality to provide additional reliability and Quality of Service features and configuration. General Features Intel Ethernet Controller I350 With PCI Express- V2.1 (5 GT/s) Support Low-Profile and Standard height full   Ethernet Features IEEE- 802.3 auto-negotiation 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames Automatic cross-over detection function (MDI/MDI-X) IEEE 1588 protocol and 802.1AS implementation   Power Management and Efficiency <1W S0-Max (state) 1000BASE-T Active 90oC (mode) <400mW S0-Typ (state) 100BASE-T Active (mode) IEEE802.3az - Energy Efficient Ethernet (EEE) DMA Coalescing Smart Power Down (SPD) at S0 no link / Sx no link ActiveStatePower Management (ASPM) Support LAN disable function Full wake up support Advanced Power Management (APM) Support (formerly Wake on LAN) Advanced Configuration and Power Interface (ACPI) specification v2.0c Magic Packet- wake-up enable with unique MAC address ACPI register set and power down functionality supporting D0 and D3 states MAC Power Management controls Low Power Link Up - Link Speed Control Power Management Protocol Offload (Proxying) Latency Tolerance Reporting (LTR)   I/O Virtualization Features Eight transmit (Tx) and receive (Rx) queue pairs per port Flexible Port Partitioning: 32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port Support for PCI-SIG SR-IOV specification Rx/Tx Round-Robin Scheduling Traffic Isolation Traffic Steering VM to VM Packet forwarding (Packet Loopback) MAC and VLAN anti-spoofing Malicious driver detection Storm control Per-pool statistics, offloads, and jumbo frames support Independent Function Level Reset (FLR) for Physical and Virtual Functions IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags IEEE 802.1q advanced packet filtering Mirroring rules Support for Simple VEPA VF Promiscuous modes   Stateless Offloads/Performance Features TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send);ExtendedTxdescriptors for more offload capabilities IPv6 support for IP/TCP and IP/UDP receive checksum offload Tx TCP segmentation offload (IPv4, IPv6) Transmit Segmentation Offloading (TSO) Interrupt throttling control Legacy and Message Signal Interrupt (MSI) Modes Message Signal Interrupt Extension (MSI-X) Intelligent interrupt generation Receive Side Scaling (RSS) for Windows environment Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP Support for packets up to 9.5K Bytes ( Jumbo Frames) Low Latency Interrupts Header/packet data split in receive PCIe v2.1 TLP Processing Hint Requester Descriptor ring management hardware for Transmit and Receive   Remote Boot Options Preboot eXecution Environment (PXE) flash interface support Intel Ethernet iSCSI Remote Boot for Windows, Linux, and VMware Intel Boot Agent software: Linux boot via PXE or BOOTP, Windows- Deployment Services, or UEFI   Manageability Features Management Component Transport Protocol (MCTP) Firmware Based Thermal Management IEEE 802.3 MII Management Interface MAC/PHY Control and Status Watchdog timer Extended error reporting Controller Memory Protection Vital Product Data (VPD) Support   Adapter Product Features Plug and play specification support Intel I/O Acceleration Technology (Intel I/OAT) Ships with full-height bracket installed; low-profile bracket included in package   Technical Features Data rate supported per port: 1000 Mbps Bus type: PCI Express- 2.1 (5 GT/s)) Bus width: 4-lane PCI Express; operable in x4, x8 and x16 slots Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X Controller-processor: Intel Ethernet Controller I350 Power consumption (typical): 6.0 W Storage temperature: -40 to 70 Centigrade Operating temperature :0 to 55 Centigrade Storage humidity: 90% non-condensing relative humidity at 35 Centigrade   Network Operating Systems (NOS) Software Support DOS, Novell ODI Windows XP 32-bit(64-bit) Windows Server 2003 32-bit(64-bit) Windows Vista 32-bit(64-bit) Windows 7 32-bit(64-bit) Windows 8 32-bit(64-bit) Windows 8.1 32-bit(64-bit) Windows Server 2008 32-bit(64-bit) Windows Server 2008 R2 32-bit(64-bit) Windows Server 2012 Windows Server 2012 R2 Linux 2.4 series kernel,2.6.x,3.x FreeBSD 7.x or most of FreeBSD UnixWare / Open Unix 8 Sun Solaris x86 VMware Xen4

Die ALL0138-1-10G-TX ist eine Multi-Gigabit (5-Speed/Geschwindigkeiten) 10GBase-T/NBASE-T-Netzwerkadapterkarte, sie unterstützt Auto-Negotiation und ermöglicht dem 5-Geschwindigkeiten die optimale Auswahl der besten Geschwindigkeit: 10 Gigabit Ethernet (10GbE), 5 Gigabit Ethernet (5GbE), 2,5 Gigabit Ethernet (2,5GbE), 1 Gigabit Ethernet (GbE) oder 100 Megabit Ethernet (100MbE) über Cat5e/Cat6 oder bessere Verkabelung. Diese Multi-Gigabit-Netzwerkkarte wurde für Low-Power- und Low-Profile-PCIe-Lösungen mit kleinem Formfaktor und Single-Port-Anschluss entwickelt, die eine durchgängige NBASE-T-Konnektivität ermöglichen. Unterstützt IP-, TCP- und UDP-Prüfsummenauslagerung, die die Leistung erhöht und die CPU-Auslastung senkt. Die große Sendefunktion (bis zu 64KB) erhöht den Netzwerkdurchsatz. Der Treiber unterstützt Microsoft Windows Server 2012, 2012R2, 2008 R2, Win10 64 bit, Win8.1 32/64 bit, Win7 32/64 bit, Microsoft Hyper-V. Es unterstützt auch Linux 2.6x, 3.x, vmware®ESXi 5.x, ESXi 6.0, Apple OS X 10.10.3 oder höher. KEY FEATURES 5-Geschwindigkeiten 10GBase-T/NBase-T Netzwerkadapterkarte Niedriger Formfaktor incl. Low-Profile-Blech PCI Express Rev2.0 (x4, x2, x1) IEEE802.3an 10GBase-T-konform NBASE-T (IEEE802.3bz) Entwurf Spezifikation konform Unterstützt Auto-Negotiation für 10G/5G/2.5G/1G/100M Unterstützt Jumbo-Rahmen 16K Unterstützt 802.1q VLAN Unterstützt RFC2819 RMON MIB Statistiken Unterstützt Multicast Unterstützt IEEE802.3ad Link Aggregation Microsoft Scalable Networking Empfangsseitige Skalierung (RSS) IP-, TCP- und UDP-Prüfsummenentladung Groß Senden bis zu 64KB Niedrige Latenz <4uS Bietet Kabeldiagnose Geringe Leistungsaufnahme Unterstützt Microsoft Windows Server Treiber : 2012, 2012 R2, 2008 R2 Unterstützt Microsoft Windows Treiber: Win10 64bit, Win8.1 32/64bit, Win7 32/64bit Unterstützt Hyper-V Unterstützt Linux 2.6.x und Linux 3.x Unterstützt vmware®ESXi 5.x, ESXi 6.0 Unterstützt Apple OS X 10.10.3 oder höher

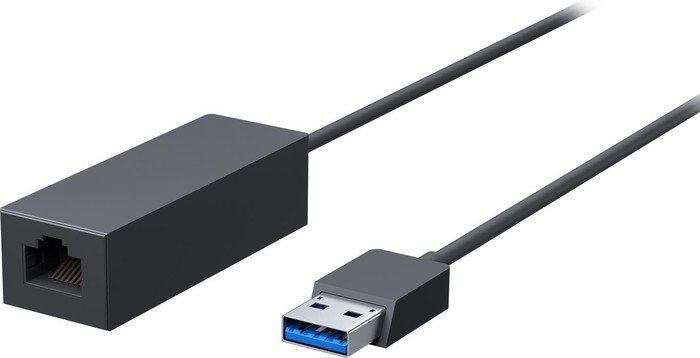

? Typ: LAN-Adapter ? Bauform: 1x extern kabelgebunden (nicht abnehmbar) ? Anbindung: 1x USB-A 3.0 ? Verbindung: 1x RJ-45 ? Übertragungsrate: 1x RJ-45 (10/100/1000Base-T) ? Abmessungen: 22x17x305mm (BxHxT, inkl. Kabel) ? Gewicht: 26g ? Kompatibilität: Microsoft Surface Pro , Microsoft Surface Notebook, Microsoft Surface Book ? Besonderheiten: Wake on LAN ? Herstellergarantie: ein Jahr

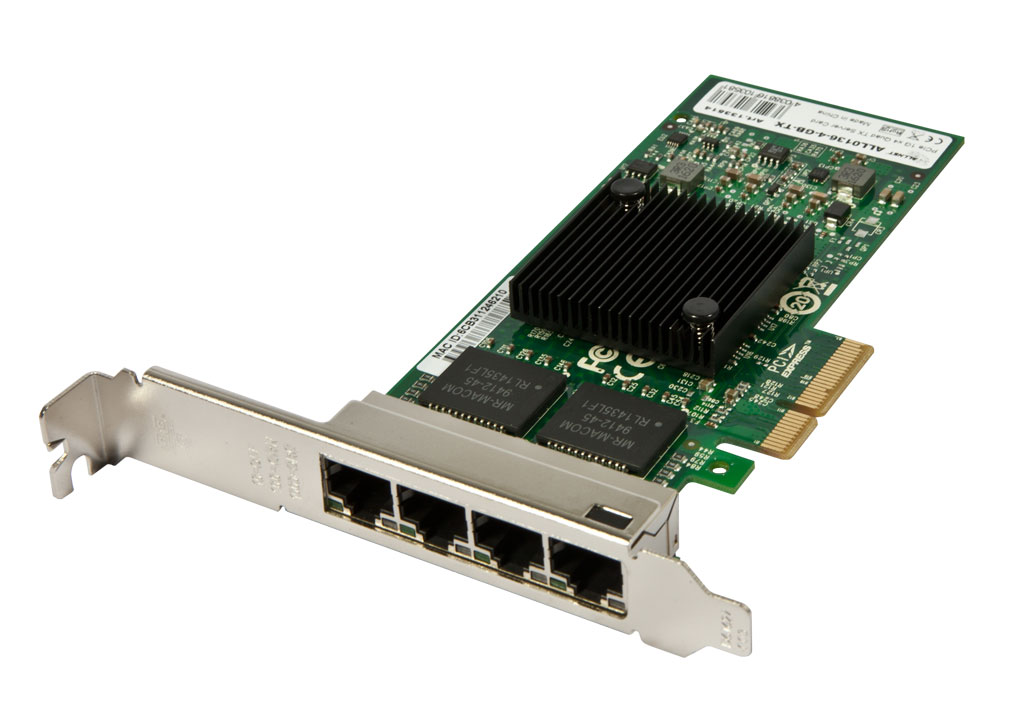

ALL0136-4-GB-TX PCI Express x4 Quad Port Copper Gigabit Server Network Adapter (Intel I350 Based) Quad-port Gigabit Ethernet server network adapters designed with performance enhancing features and new power management technologies     Key Features Halogen-free quad-port Gigabit Ethernet network adapters with copper interface options Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports Scalable iSCSI performance delivering cost-effective SAN connectivity High-performing bridgeless design supporting PCI Express- Gen 2.1 5GT/s Reliable and proven Gigabit Ethernet technology from Intel Corporation   Overview The new ALL0136-4-GB-TX Network Adapter builds on ALLNET history of excellence. ALLNET continues its market leadership with this new generation of PCIe- GbE network adapters.Built with the bridgeless Intel Ethernet Controller I350, these network adapter represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments.This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).   Flexible I/O Virtualization The ALL0136-4-GB-TX network adapter includes Intel Virtualization Technology for connectivity (Intel VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the controller on the adapter.I/O virtualization advances network connectivity models used in todays servers to more efficient models by providing Flexible Port Partitioning (FPP),multiple Rx/Tx queues, and on- controller QoS functionality that can be used in both virtual and non-virtual server deployments.   By taking advantage of the PCI-SIG SR-IOV specification,the adapter enable Flexible Port Partitioning (FPP). With FPP,virtual controllers can be used by the Linux- host directly and/or assigned to virtual machines.With this port partitioning,administrators can create up to eight dedicated connections on a single Ethernet port for use in baremetal and virtualized server deployments. In a bare-metal Linux server, host processes can be assigned to dedicated network resources to provide traffic isolation and balanced bandwidth allocation. In a virtualized environment, a VM can be assigned to a virtual controller to reduce the CPU overhead seen when using a software-based network bridge by offloading network traffic management to the controller.   Scalable iSCSI Performance ALL0136-4-GB-TX network adapter with native iSCSI initiators built into Microsoft- Windows-, Linux-,and VMware- ESX platforms provides a simple,dependable, cost-effective way to connect to iSCSI SANs.These native initiators are broadly tested using multiple generations of operating systems,storage systems,and OS tools to help ensure reliability and ease of use.Standardizing on ALLNET Ethernet Adapters for iSCSI enables administrators to use a single initiator,TCP/IP stack, and a common set of management tools and IT policies.In addition, ALLNET Ethernet Server Adapters include a number of hardware features designed to accelerate iSCSI traffic and enhance data processing. For example, TCP segmentation offload and checksum offload capabilities help reduce processor usage, increase throughput, and deliver exceptional iSCSI performance. Finally, using native OS initiators, an ALL0136-4-GB-TX network adapter supports the CRC-32 digest instruction set included with Intel Xeon processor products,which improves transmission reliability and delivers an enterprise-class iSCSI solution.   Power Management Technologies Today,companies everywhere are looking for ways to decrease energy consumption across the enterprise to reduce costs and environmental impact, while at the same time solving increasingly important power density challenges. Thats why ALLNET has introduced new, advanced Power Management Technologies (PMTs)with the ALL0136-4-GB-TX network adapter that enable enterprises to configure power options on the adapter and more effectively manage their power consumption.   Energy Efficient Ethernet (EEE) The ALL0136-4-GB-TX network adapter supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard so that, during periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state.This reduces the controller power to approximately 50% of its normal operating power, saving power on the network port and the switch port. As oon as increased network traffic is detected, the controller and the switch quickly come back to full power to handle the increased network traffic. EEE is supported for both 1000BASE-T and100BASE-TX.   DMA Coalescing Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically, when a packet arrives at a server, DMA calls are made to transfer the packet within the server. These calls wake up the processor, memory and other system components from a lower power state in order to perform the tasks required to handle the incoming packet. Based on the configurable DMAC settings, incoming packets are buffered momentarily before any DMA calls are made. This enables the controller to intelligently identify opportunities to batch multiple packets together so that when components are wakened from lower power states they can efficiently handle the batched packets at the same time. This enables platform components to remain in lower power states longer, which can dramatically reduce platform energy consumption. DMAC synchronizes DMA calls across all controller ports to ensure maximum power savings.   Software Tools and Management ALLNET include new teaming technologies and techniques such as Virtual Machine Load-Balancing (VMLB) for Hyper-V environments. Today, ALLNET includes a variety of teaming configurations for up to eight adapters, support for mixed vendors server adapters teaming and includes support for 802.1q VLANs, making ALLNET one of the most capable and comprehensive tools for supporting server adapter teaming. Additionally, Intel PROSet for Windows- Device Manager and PROset CL extends driver functionality to provide additional reliability and Quality of Service features and configuration. General Features Intel Ethernet Controller I350 With PCI Express- V2.1 (5 GT/s) Support Halogen Free1 Low-Profile and Standard height full   Ethernet Features IEEE- 802.3 auto-negotiation 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames Automatic cross-over detection function (MDI/MDI-X) IEEE 1588 protocol and 802.1AS implementation   Power Management and Efficiency <1W S0-Max (state) 1000BASE-T Active 90oC (mode) <400mW S0-Typ (state) 100BASE-T Active (mode) IEEE802.3az - Energy Efficient Ethernet (EEE) DMA Coalescing Smart Power Down (SPD) at S0 no link / Sx no link ActiveStatePower Management (ASPM) Support LAN disable function Full wake up support Advanced Power Management (APM) Support (formerly Wake on LAN) Advanced Configuration and Power Interface (ACPI) specification v2.0c Magic Packet- wake-up enable with unique MAC address ACPI register set and power down functionality supporting D0 and D3 states MAC Power Management controls Low Power Link Up - Link Speed Control Power Management Protocol Offload (Proxying) Latency Tolerance Reporting (LTR)   I/O Virtualization Features Eight transmit (Tx) and receive (Rx) queue pairs per port Flexible Port Partitioning: 32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port Support for PCI-SIG SR-IOV specification Rx/Tx Round-Robin Scheduling Traffic Isolation Traffic Steering VM to VM Packet forwarding (Packet Loopback) MAC and VLAN anti-spoofing Malicious driver detection Storm control Per-pool statistics, offloads, and jumbo frames support Independent Function Level Reset (FLR) for Physical and Virtual Functions IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags IEEE 802.1q advanced packet filtering Mirroring rules Support for Simple VEPA VF Promiscuous modes   Stateless Offloads/Performance Features TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send);ExtendedTxdescriptors for more offload capabilities IPv6 support for IP/TCP and IP/UDP receive checksum offload Tx TCP segmentation offload (IPv4, IPv6) Transmit Segmentation Offloading (TSO) Interrupt throttling control Legacy and Message Signal Interrupt (MSI) Modes Message Signal Interrupt Extension (MSI-X) Intelligent interrupt generation Receive Side Scaling (RSS) for Windows environment Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP Support for packets up to 9.5K Bytes ( Jumbo Frames) Low Latency Interrupts Header/packet data split in receive PCIe v2.1 TLP Processing Hint Requester Descriptor ring management hardware for Transmit and Receive   Remote Boot Options Preboot eXecution Environment (PXE) flash interface support Intel Ethernet iSCSI Remote Boot for Windows, Linux, and VMware Intel Boot Agent software:Linux boot via PXE or BOOTP, Windows- Deployment Services, or UEFI   Manageability Features Management Component Transport Protocol (MCTP) Firmware Based Thermal Management IEEE 802.3 MII Management Interface MAC/PHY Control and Status Watchdog timer Extended error reporting Controller Memory Protection Vital Product Data (VPD) Support   Adapter Product Features Plug and play specification support Intel I/O Acceleration Technology (Intel I/OAT) Ships with full-height bracket installed; low-profile bracket included in package   Technical Features Data rate supported per port: 10/100/1000 Mbps Bus type: PCI Express- 2.1 (5 GT/s)) Bus width: 4-lane PCI Express; operable in x4, x8 and x16 slots Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X Controller-processor: Intel Ethernet Controller I350 Power consumption (typical): 6.0 W Storage temperature: -40 to 70 Centigrade Operating temperature :0 to 55 Centigrade Storage humidity: 90% non-condensing relative humidity at 35 Centigrade   Network Operating Systems (NOS) Software Support DOS, Novell ODI Windows XP 32-bit(64-bit) Windows Server 2003 32-bit(64-bit) Windows Vista 32-bit(64-bit) Windows 7 32-bit(64-bit) Windows 8 32-bit(64-bit) Windows 8.1 32-bit(64-bit) Windows Server 2008 32-bit(64-bit) Windows Server 2008 R2 32-bit(64-bit) Windows Server 2012 Windows Server 2012 R2 Linux 2.4 series kernel,2.6.x,3.x FreeBSD 7.x or most of the FreeBSD UnixWare / Open Unix 8 Sun Solaris x86 Xen4 VMware

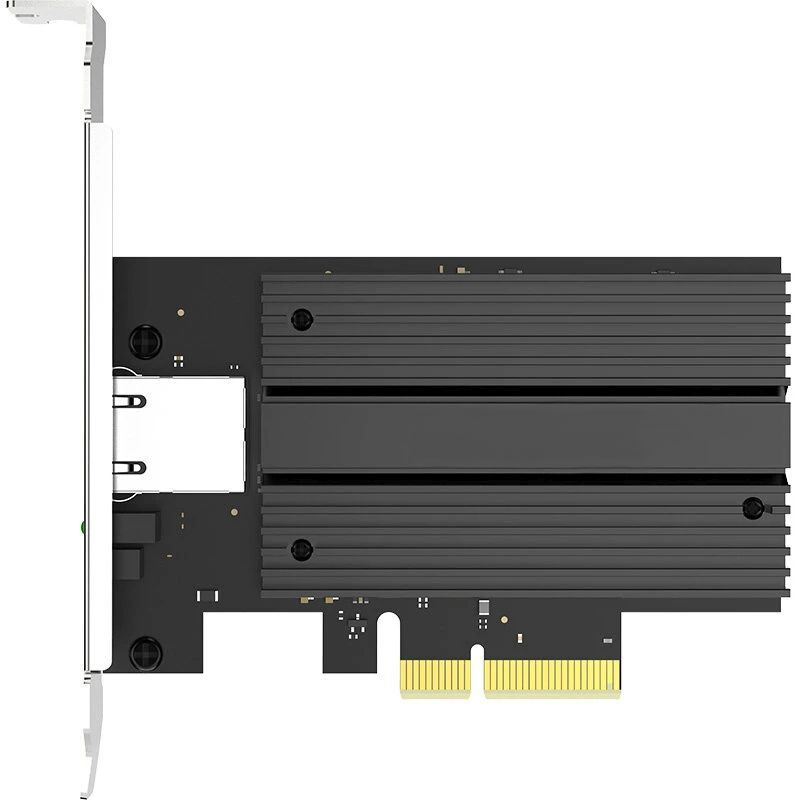

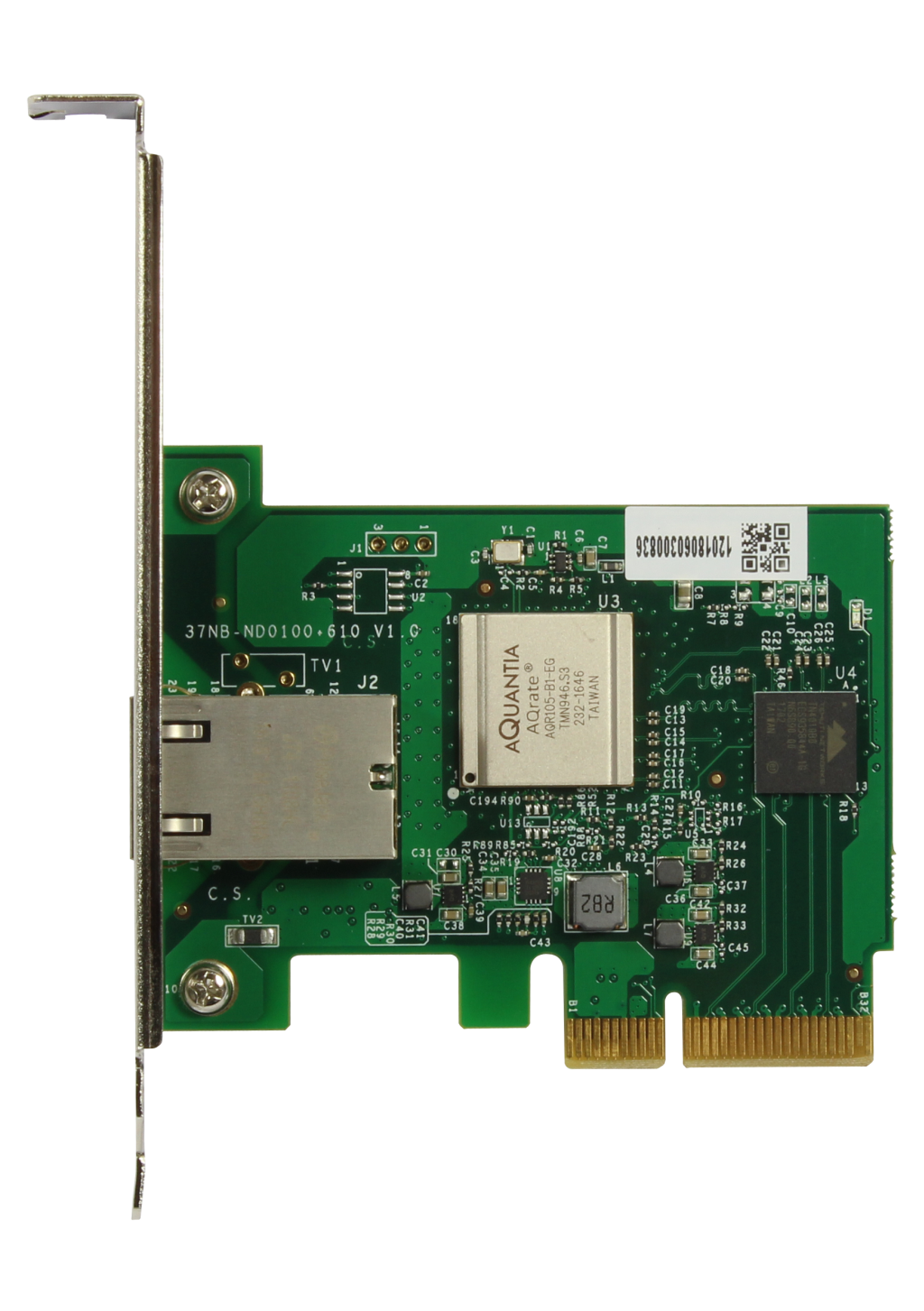

ALL0138v2-1-10G-TX ist ein PCI-Express-x4-Single-Port-10-Gigabit-Ethernet-Netzwerkadapter und basiert auf der Aquantia AQtion AQC107-Chiplösung. Er ist auch mit PCIe x8- und x16-Kanälen kompatibel. Ein hochleistungsfähiger NIC-Adapter mit fünf Raten, der PCIe, MAC und PHY integriert, um Strom- und platzsparende Konnektivität für Client-Systeme zu bieten. Die universelle PCIe x4-Schnittstelle verleiht diesem Produkt große Flexibilität. Der integrierte PHY kann übeCAT6a mit einer Geschwindigkeit von bis zu 10 Gbit/s über eine Entfernung von 100 Metern geroutet werden. Er unterstützt auch 5-Gbit/s-Netzwerkverbindungen über herkömmliche Cat-5e- oder Cat-6-Verkabelung. Der ALL0138v2-1-10G-TX ist konform mit IEEE 802.3an & IEEE 802.3 bz und ermöglicht die Übertragung von 2,5GBASE-T, 5GBASE-T, 10GBASE-T, 1000BASE-T und 100BASE-TX über 100 m Twisted-Pair-Verkabelung. Technical Details: Hardware Specification AQUANTIA-AQC107 Hardware Bus Type PCI Express 3.0 8.0 GT/s Bus Type PCIE-X4 Physical Interface IEEE802.3u 100BASETX, IEEE802.3ab 1000BASEF, IEEE802.3an 10GBASETT, IEEE802.IQ VLANs, IEEE802.3x FlowControl, IEEE802.Ip Priority Queuing, IEEE 802.3azEEE Indicators LED, 1-10G speed LED(Amber) Network Port Type 10G RJ45 Full/half Duplex Self-adaptive Network Environment 10G Ethernet Suits For PCI Express enabled PC, and with available PCI Express x4 slot Gen2.0 or higher (x8, x16) Support OS Windows®7, 8.x, 10 Windows Server®2008R2, 2012, 2016 Linux 2.6.x to 4.x Working Environment Environment humidity: 20-80%RH Working temperature:5° C~50° C Storage temperature:-25° C~70° C Package Content 1x ALL0138v2-1-10G-TX Network Card 1x User guide 1x Screw 1x Case baffle
