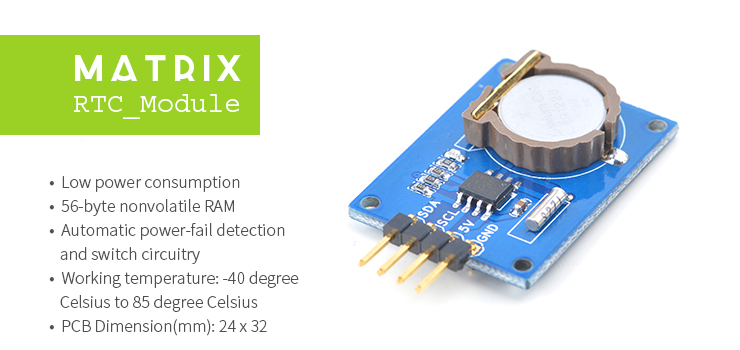

FriendlyELEC Matrix RTC Module
Termékszám:
135967

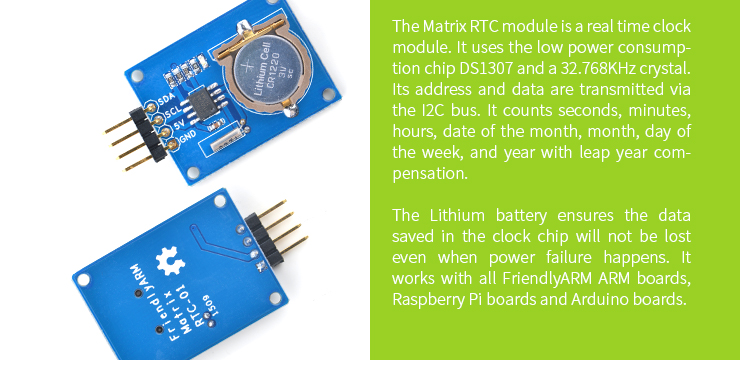

The Matrix RTC module is a real time clock module. It uses the low power consumption chip DS1307 with valid up to 2100 56 byte nonvolatile RAM for data storage and 2-wire IIC serial interface It counts seconds, minutes, hours, date of the month, month, day of the week, and year with leap year compensation.
I2C serial interface
56-byte nonvolatile RAM
8-Pin DIP and 8-Pin SO
Working temperature: -40 degree Celsius to 85 degree Celsius

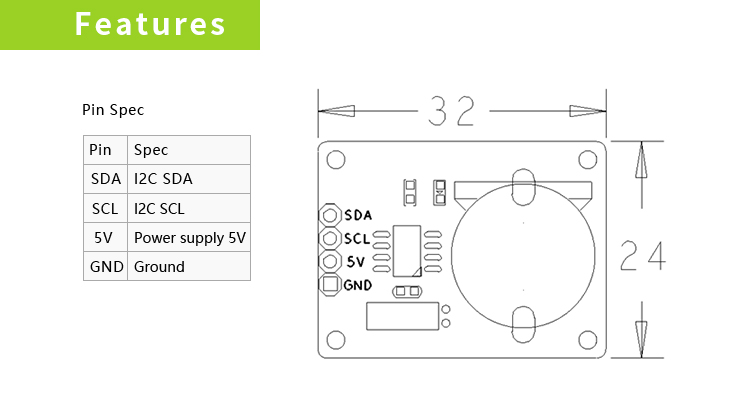

PCB dimension(mm): 24 x 32
Pin Description:
Pin
Description
SDA
I2C SDA
SCL
I2C SCL
5V
Supply Voltage 5V
GND
Ground
Related Resources
WIKI:http://wiki.FriendlyELEC.com/wiki/index.php/Matrix_-_RTC
711 Ft
Több mint 100.000 termék azonnal raktárról
Megbízható, elismert világmárkák
30 év szakmai tapasztalat
Versenyképes árak
Figyelem! A termékleírások automatizált fordítószoftver által jöttek létre.
Termékinformációk "FriendlyELEC Matrix RTC Module"
The Matrix RTC module is a real time clock module. It uses the low power consumption chip DS1307 with valid up to 2100 56 byte nonvolatile RAM for data storage and 2-wire IIC serial interface It counts seconds, minutes, hours, date of the month, month, day of the week, and year with leap year compensation.
- I2C serial interface
- 56-byte nonvolatile RAM
- 8-Pin DIP and 8-Pin SO
- Working temperature: -40 degree Celsius to 85 degree Celsius
- PCB dimension(mm): 24 x 32
- Pin Description:
| Pin | Description |
| SDA | I2C SDA |
| SCL | I2C SCL |
| 5V | Supply Voltage 5V |
| GND | Ground |
Related Resources
WIKI:http://wiki.FriendlyELEC.com/wiki/index.php/Matrix_-_RTC
