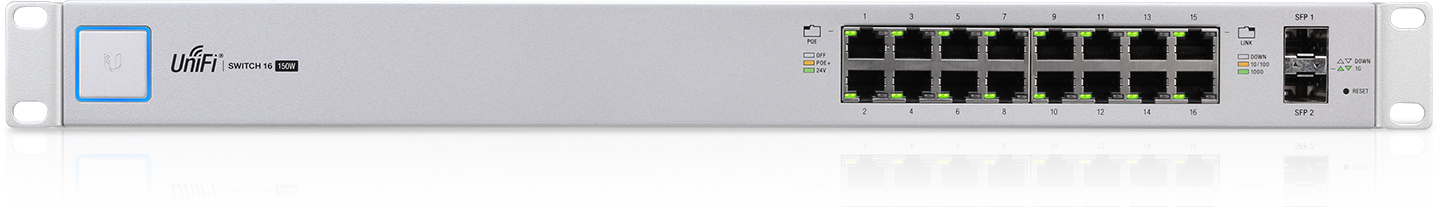

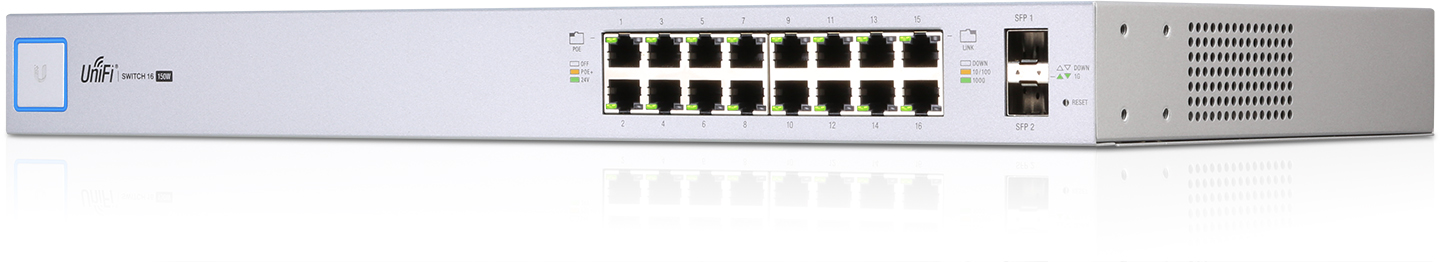

Ubiquiti UniFi Switch / 16 Ports / 150W / POE+ / 2 SFP / US-16-150W
Termékszám:
128959
(16) Gigabit RJ45 Ports
(2) SFP Ports
(1) Serial Console Port (Reserved for Future Use)
Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Maximum Power Consumption: 150W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Rack-Mountable or Wall-Mountable with Rack-Mount
Brackets (Included)
Dimensions
443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Total Non-Blocking Throughput
18 Gbps
Switching Capacity
36 Gbps
Forwarding Rate
26.78 Mpps
Certifications
CE, FCC, IC
Rack Mount
Yes, 1U High
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
5 to 95% Noncondensing
Shock and Vibration
ETSI300-019-1.4 Standard
PoE Interfaces
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE
34.2W
Voltage Range 802.3at Mode
50?57V
Max. Passive PoE Wattage per Port
17W
24V Passive PoE Voltage Range
20-27V
106 299 Ft
